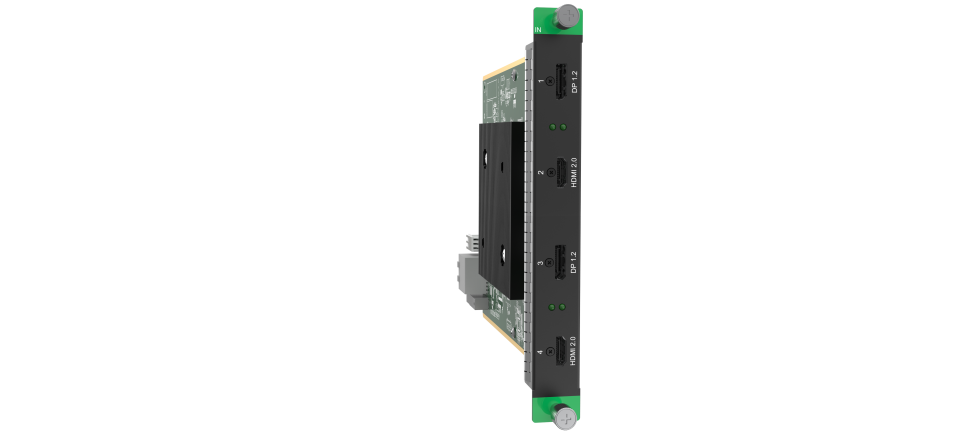

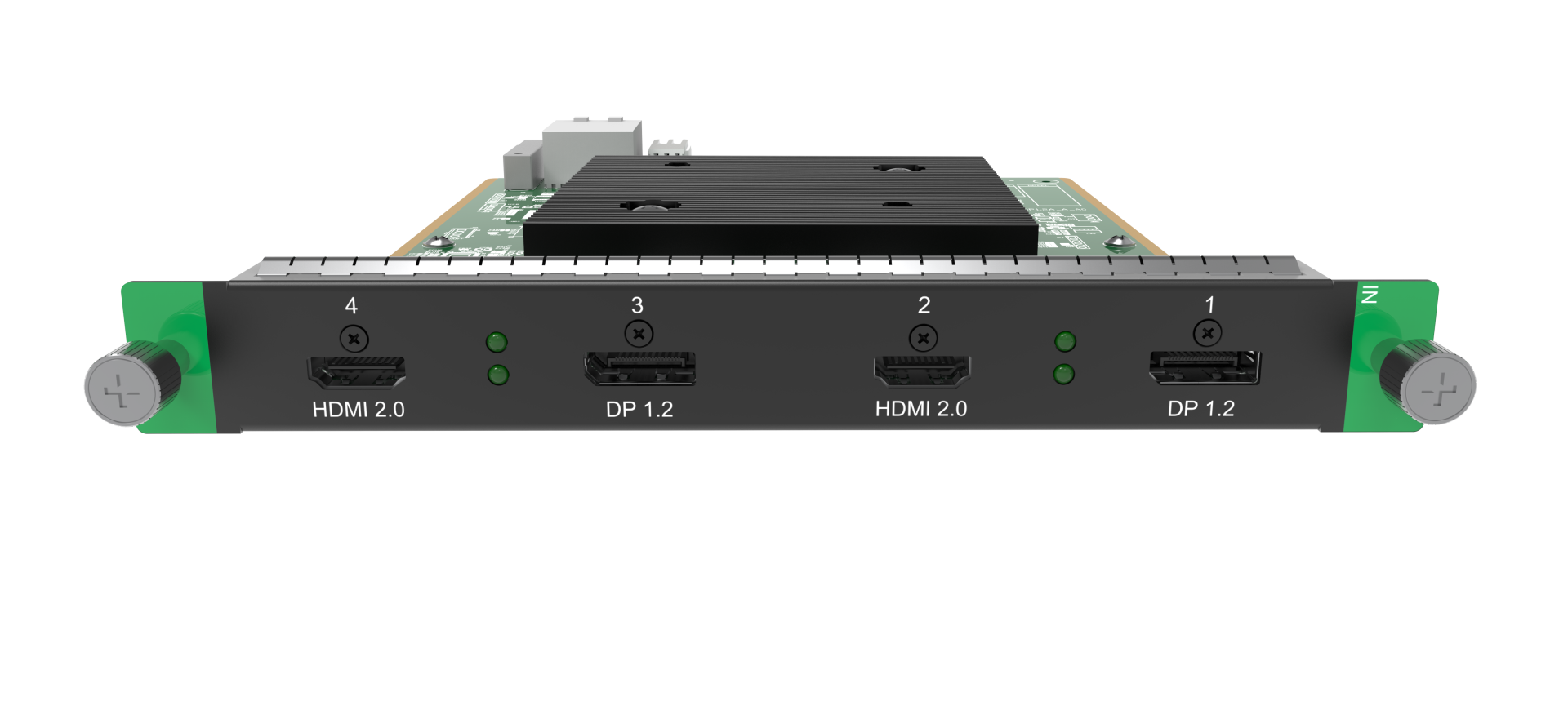

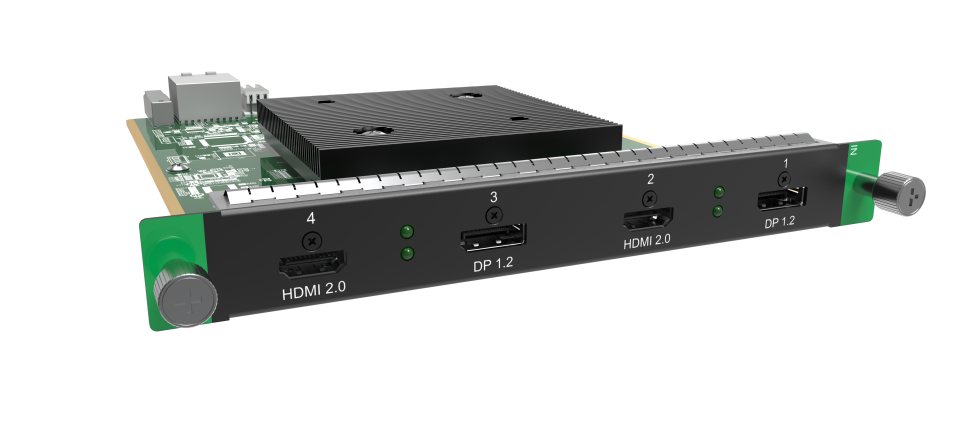

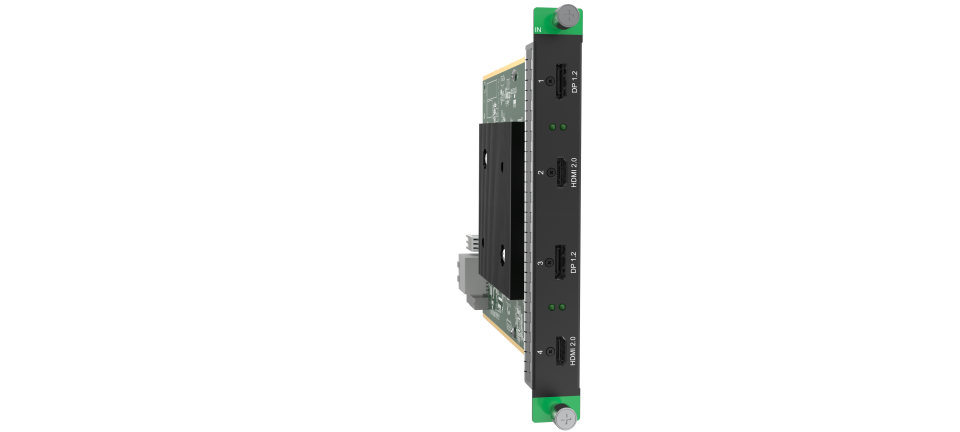

NovaStar H Series 12 H_2*HDMI2.0 + 2*DP1.2 Input Card Plug-in Specifications

Overview:

The NovaStar H Series 12 H_2*HDMI2.0 + 2*DP1.2 Input Card Plug-in offers versatile input options for your H-Series controller. It provides two HDMI 2.0 and two DisplayPort (DP 1.2) inputs, delivering high-resolution video input with HDCP 2.2 support. This card is ideal for use in high-quality video processing systems, ensuring compatibility with a variety of input devices and offering excellent performance in video display setups.

Key Features:

• Inputs:
  • 2x HDMI 2.0 (Backwards compatible with HDMI 1.4 & HDMI 1.3)
  • 2x DP 1.2 (Backwards compatible with DP 1.1)
• Maximum Resolution:
  • HDMI 2.0: 4096×2160@60Hz or 8192×1080@60Hz
  • DP 1.2: 4096×2160@60Hz or 8192×1080@60Hz
• HDCP 2.2 Compatibility: Yes
• Custom EDID's:
  • HDMI 2.0: Max. Width: 4092 pixels (4092×2261@60Hz), Max. Height: 4095 pixels (2188×4095@60Hz)
  • DP 1.2: Max. Width: 8192 pixels (8192×1146@60Hz), Max. Height: 4095 pixels (2188×4095@60Hz)
• Hint: Only one input per input group can be used at a time.
• Compatibility: This card can only be used with a NovaStar H15 or NovaStar H15 Enhanced controller.

Mechanical Specifications:

• Weight: 0.8 kg (1.764 lb)
• IP Rating: IP20 (indoor use only)
• Colour: Black
