Description

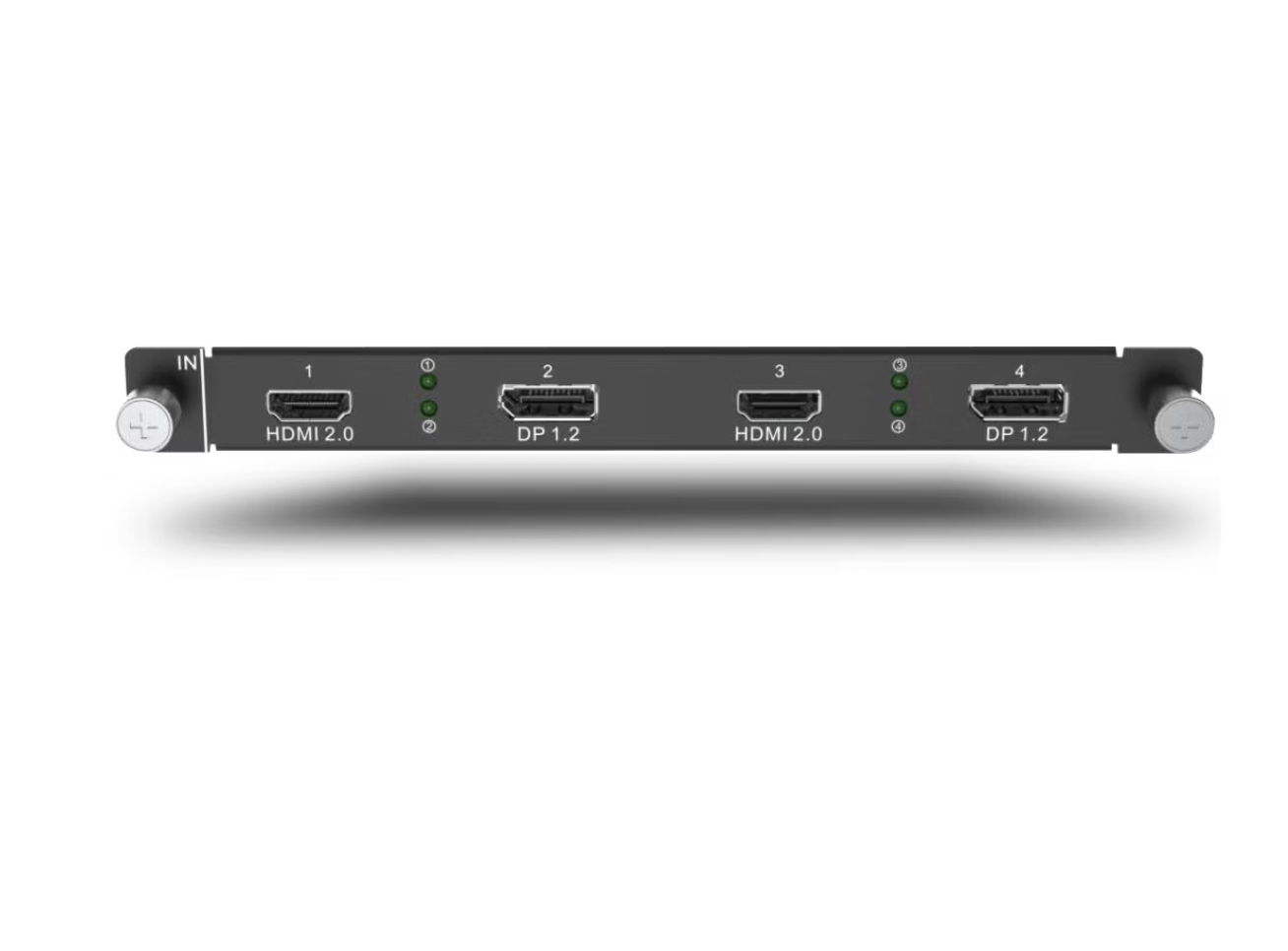

H_2xHDMI2.0 2xDP1.2 Input Card

Video input card for the controllers of the H series:

Specifications:

• The input card has two input groups, each with 1x HDMI2.0 and 1x DP1.2 input.
• 2x HDMI 2.0:
  • Backward compatible with HDMI 1.4 & HDMI 1.3
  • Max. resolution: 4096×2160@60Hz or 8192×1080@60Hz
  • HDCP 2.2 compatible
  • Custom EDID's: Max width: 4092 pixels (4092×2261@60Hz), Max height: 4095 pixels (2188×4095@60Hz)
• 2x DP 1.2:
  • Backward compatible with DP 1.1
  • Max. resolution: 4096×2160@60Hz or 8192×1080@60Hz
  • HDCP 2.2 compatible
  • Custom EDID's: Max width: 8192 pixels (8192×1146@60Hz), Max height: 4095 pixels (2188×4095@60Hz)

Notes:

• Only one input per input group can be used at a time.
• The card can only be used in conjunction with a NovaStar H15 or NovaStar H15 Enhanced controller.
