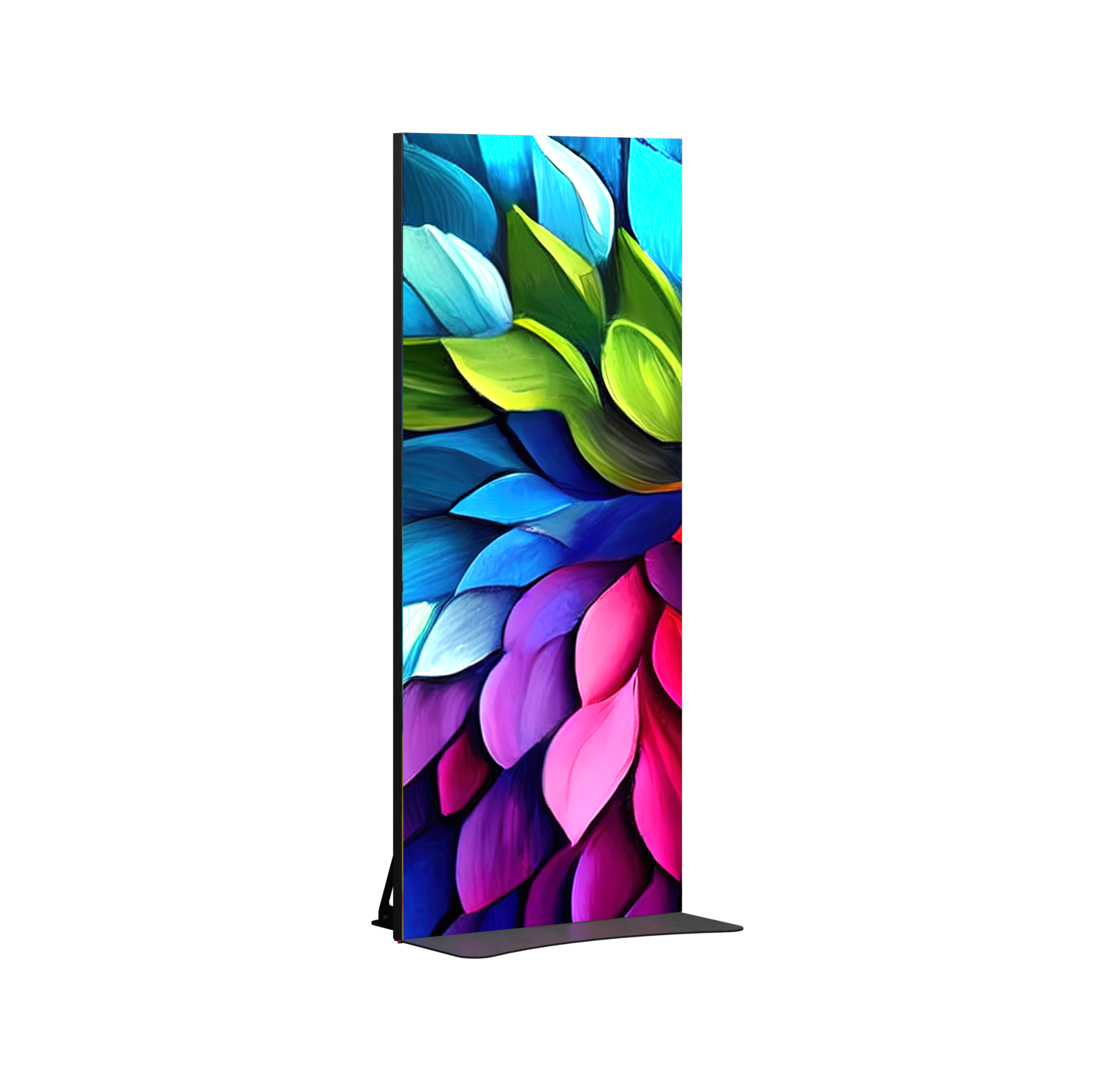

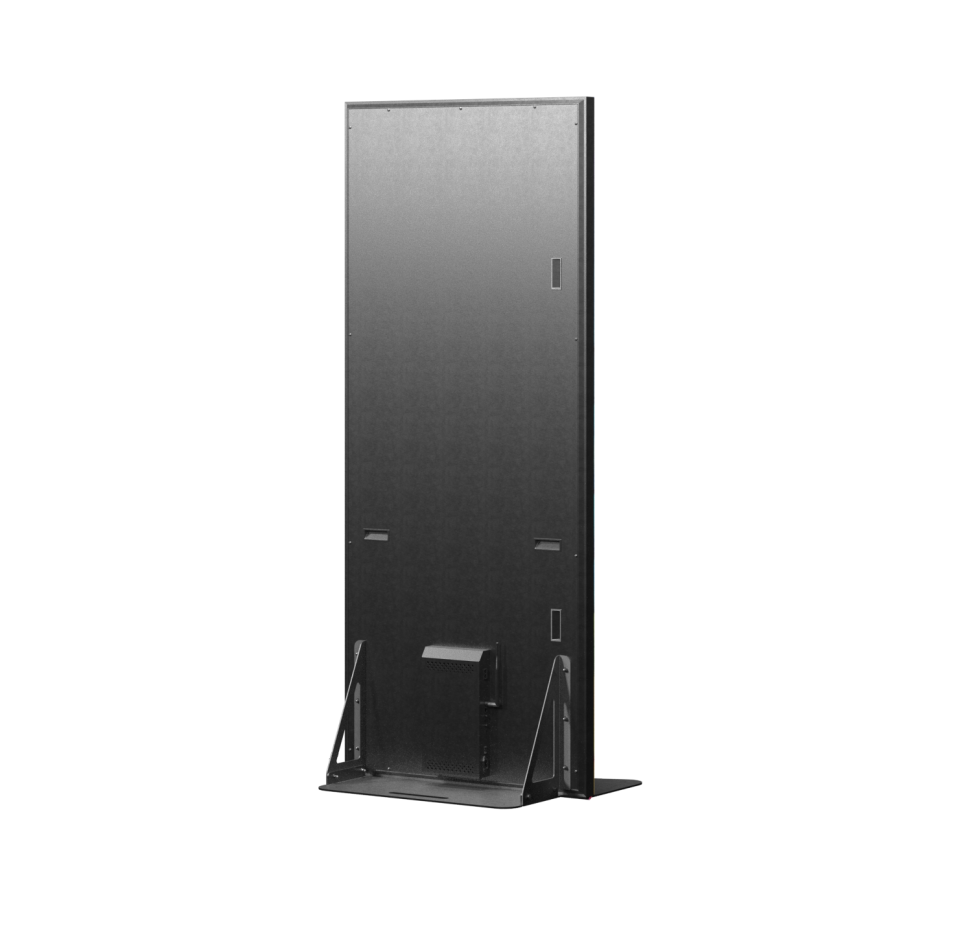

Description of LEDUP 1.9mm Indoor

General Features:

• Operating Environment: Indoor
• Pixel Pitch: 1.9mm
• Service Type: Front access
• Calibrated Brightness: 1,000 nits
• Lamp Type: SMD (Surface-Mounted Diode)
• Lifespan (at 50% brightness): >100,000 hours
• White Color Calibration (adjustable): 3,500K ~ 8,500K
• Gray Scale: >16 bits
• Brightness Control: 256 levels

Module Specifications:

• Refresh Rate: 3,840Hz
• LED Drive Method: Dynamic
• Module Material: Plastic
• PCB Type: Multilayer
• PCB Surface Coating: Humiseal

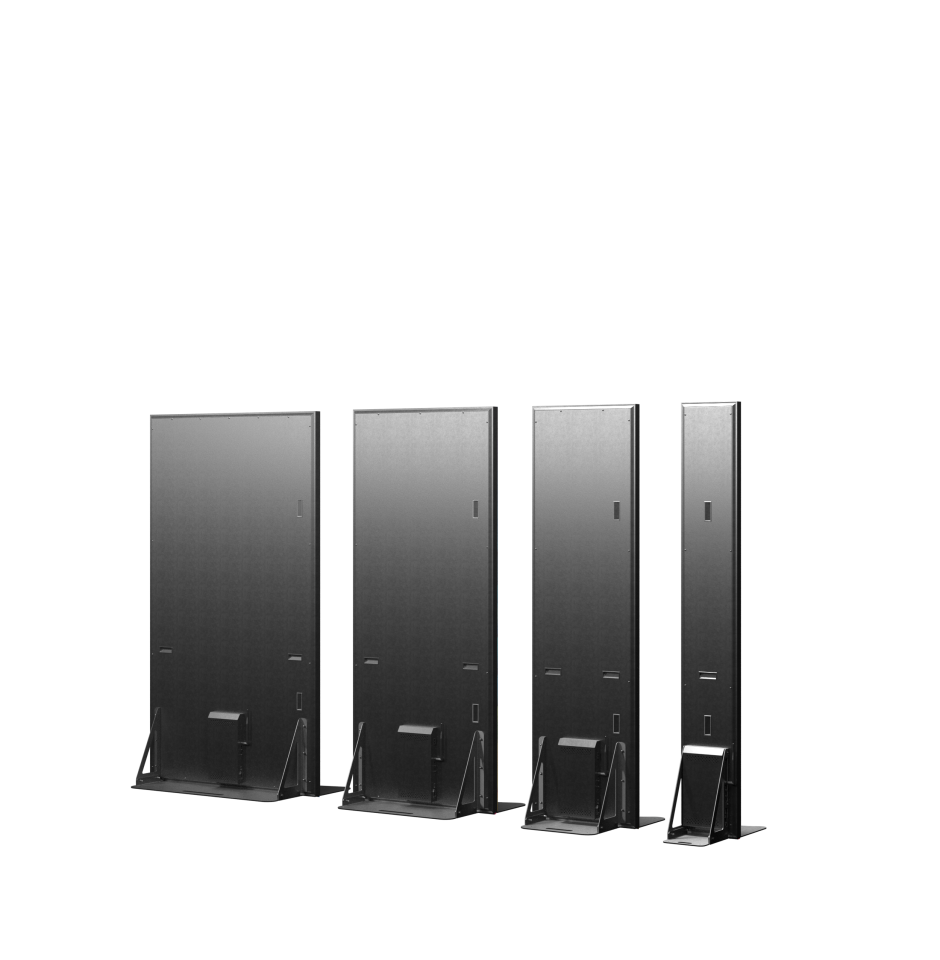

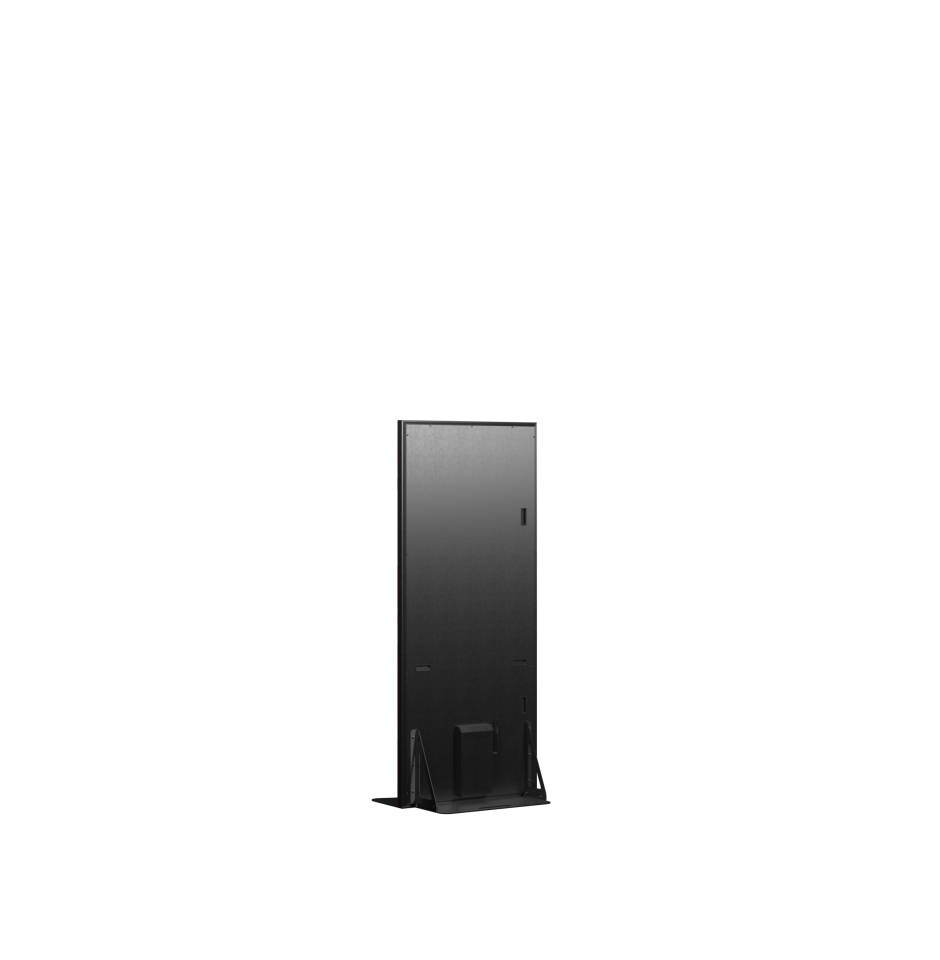

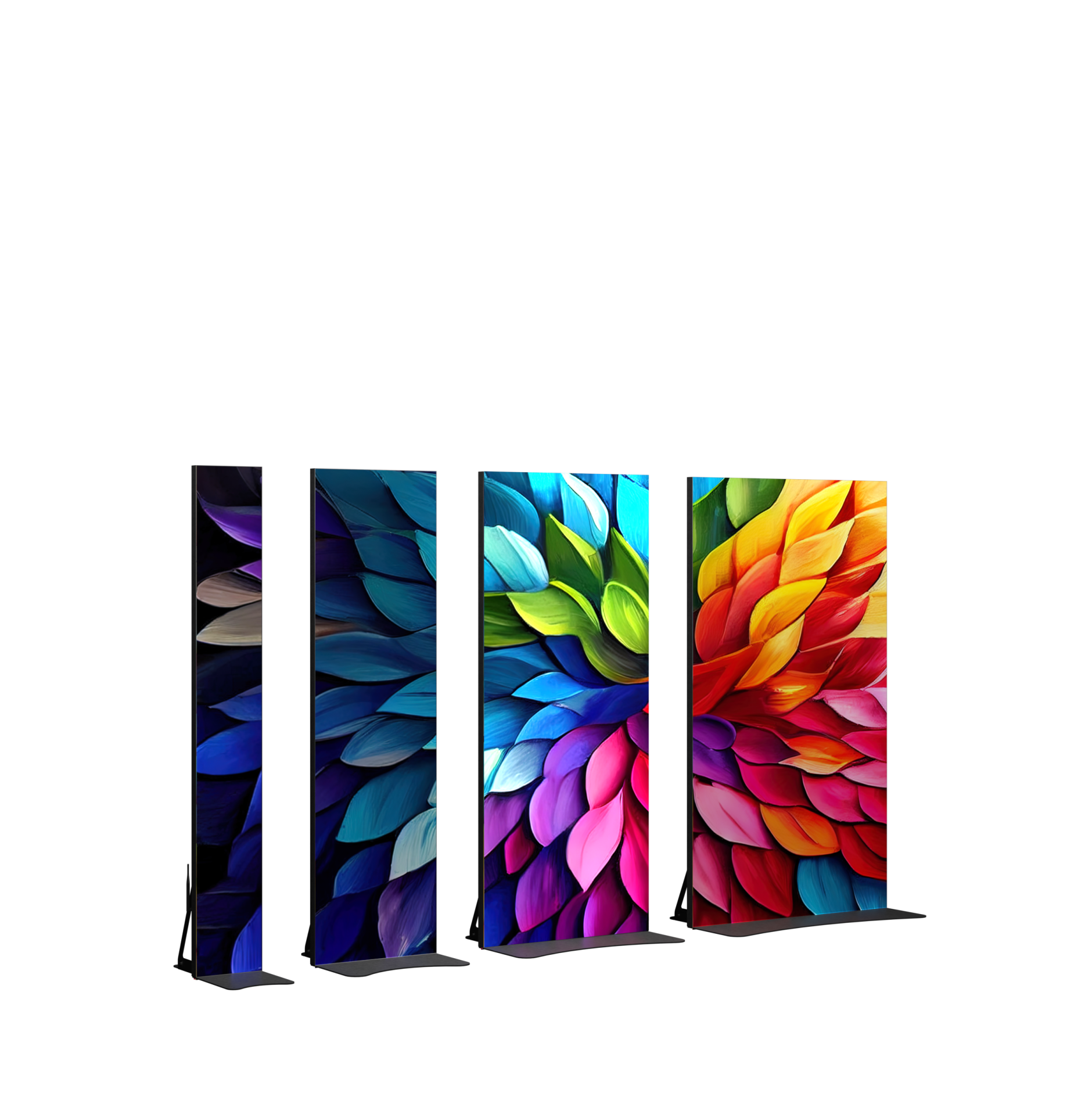

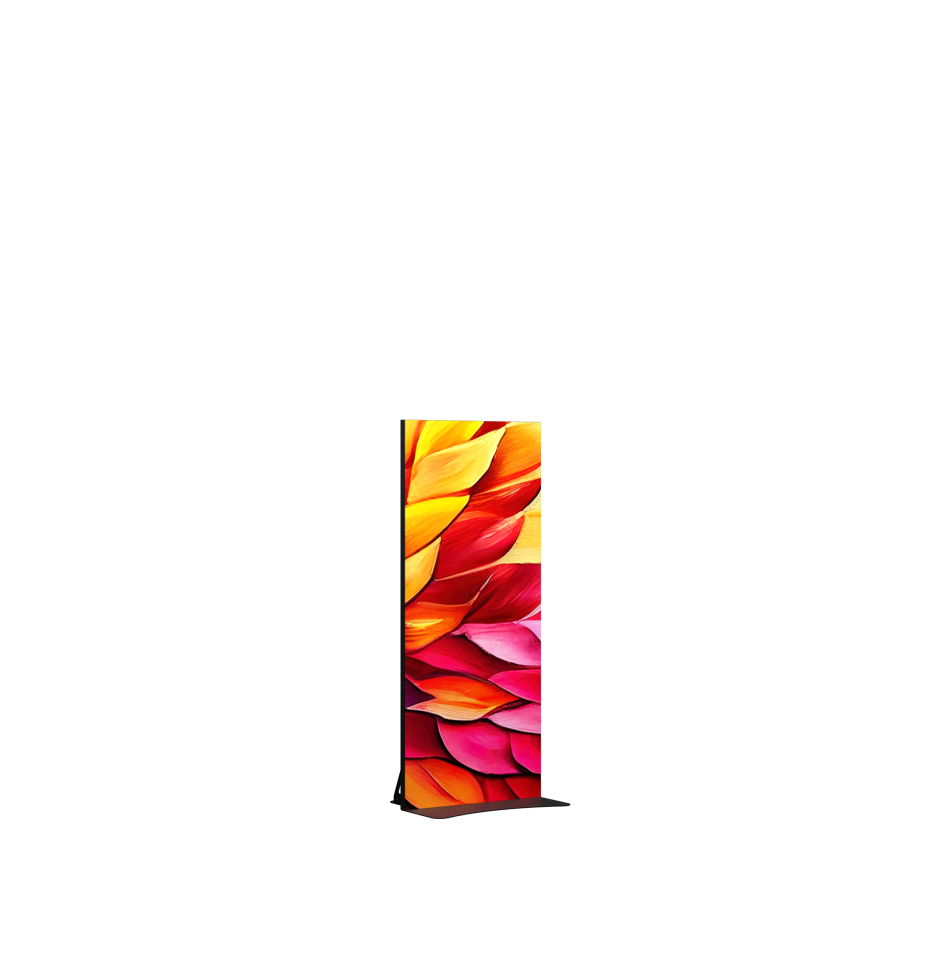

Panel Specifications:

• Product Material: Aluminum
• Screen Dimensions (mm):
  • 304 x 1,000 (1)
  • 608 x 1,000 (2)
  • 912 x 1,000 (3)
  • 1,216 x 1,000 (4)
• Product Depth: 55mm
• Diagonal Size:
  • 70” (1)
  • 80” (2)
  • 90” (3)
  • 100” (4)
• Aspect Ratio:
  • 3.6:16 (1)
  • 7.2:16 (2)
  • 10.8:16 (3)
  • 14.4:16 (4)
• IP Rating: IP22
• Product Weight (approx. single side):
  • 18kg (1)
  • 36kg (2)
  • 54kg (3)
  • 72kg (4)
• Screen Resolution:
  • 160 x 512 pixels (1)
  • 320 x 512 pixels (2)
  • 480 x 512 pixels (3)
  • 640 x 512 pixels (4)
• Viewing Angle (Horizontal x Vertical): >160° x 140°
• Minimum Viewing Distance: >1.9m
• Operating Temperature Range: -5°C ~ +45°C
• Storage Temperature Range: -20°C ~ +60°C
• Operating Humidity: 10% ~ 90% (non-condensing)

Electrical Specifications:

• Power Input Voltage: 110V ~ 240V AC
• Power Input Frequency: 50Hz ~ 60Hz
• Average Power Consumption: <100W ~ 180W
• Max Power Consumption: <320W ~ 600W
• Active PFC (Power Factor Correction): Yes
• Load Tolerance: 25% minimum
• Cooling: Passive cooling
• Product Color: Grey (RAL 7016)

Additional Features:

• Internal Player: Yes
• Combined Screen Function: Yes
• Installation Type: Stand, hanging, or wall mounting
• Brightness Adjustment: Automatic & manual
• Dead Pixel Monitoring: N/A
• Module Monitoring: N/A
• Temperature Monitoring: Yes
• Signal Path Backup: Yes
• Signal Transmission: CAT or Fiber Optic
• Standby Scheduling: Yes
• Power On/Off Scheduling: Optional
• Power Saving Mode: Yes

Certifications:

• CE-EMC
• CE-LVD
• RoHS
• FCC
