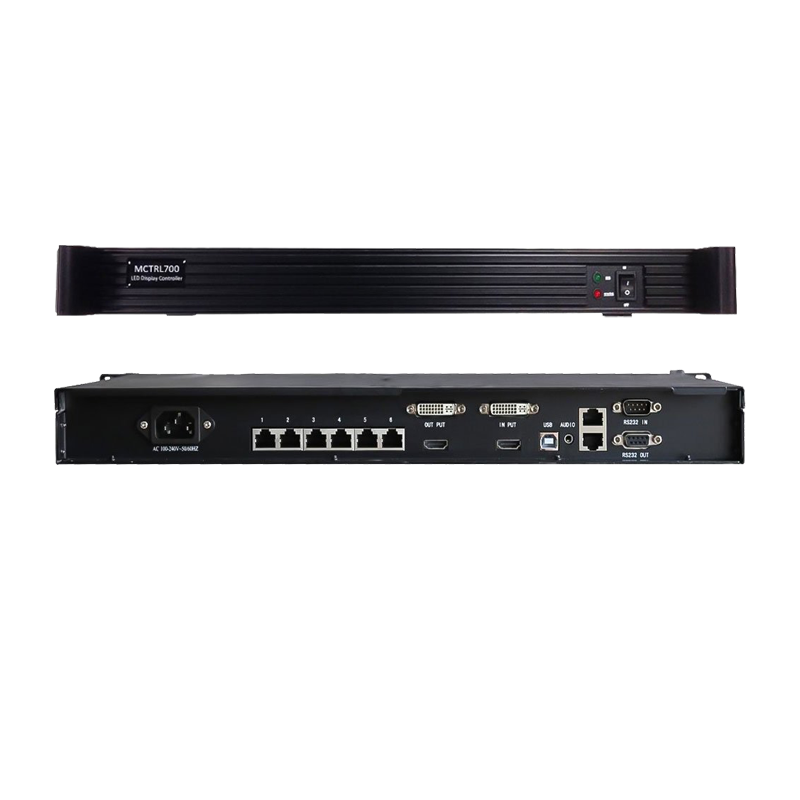

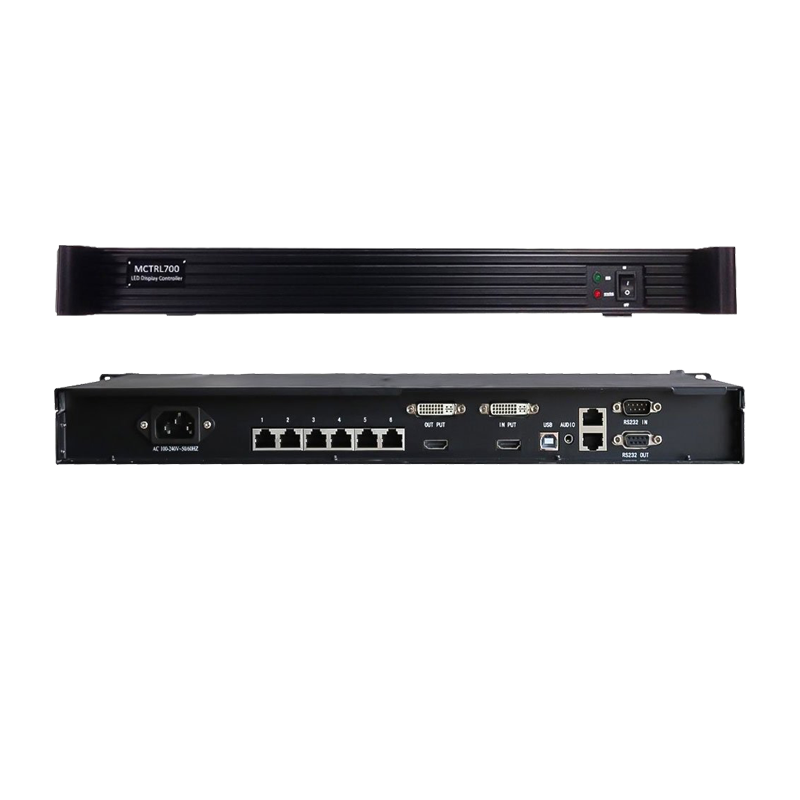

NOVASTAR MCTRL 700
MCTRL700 Specifications
Key Features:
- Loading Capacity: Single-unit loading capacity of 1920×1200@60Hz.
- Input Connectors:
- 1× SL-DVI (IN-OUT)
- 1× HDMI 1.3 (IN-OUT)
- 1× Audio Input
- Video Source Loading Capacity:
- 8bit video source: 1920×1200@60Hz
- 12bit video source: 1440×900@60Hz
- Ethernet Outputs: 6x 1G network port outputs for connecting to display units.
- USB Control: 1× USB control port.
- UART Control: 2× UART control ports for cascading up to 20 units.
- Calibration: Point-to-point brightness and color calibration using NovaLCT and NOVACLB software.
Applications:
- Rental and fixed installations such as concerts, live broadcasting, monitoring centers, Olympic events, sports arenas, and more.
Software Support:
- NovaLCT and NOVACLB: Software for brightness and color calibration, ensuring uniform brightness and color across the entire display.
Certifications:
- CE
- RoHS
- FCC
- EAC
- IC
Connector Details:
| Connector | Connector Name | Description |
|---|---|---|
| DVI | SL-DVI (IN-OUT) | Supports DVI input and output for signal transmission. |
| HDMI | HDMI 1.3 (IN-OUT) | Supports HDMI input and output for video signal transmission. |
| Audio | Audio Input | For transmitting audio input to the display system. |
| RJ45 | Ethernet Output | For connecting to display units with 6x 1G network ports. |
| USB | USB Control Port | For connecting to PC for control and settings configuration. |
| UART | UART Control Port | For cascading and controlling up to 20 units. |
