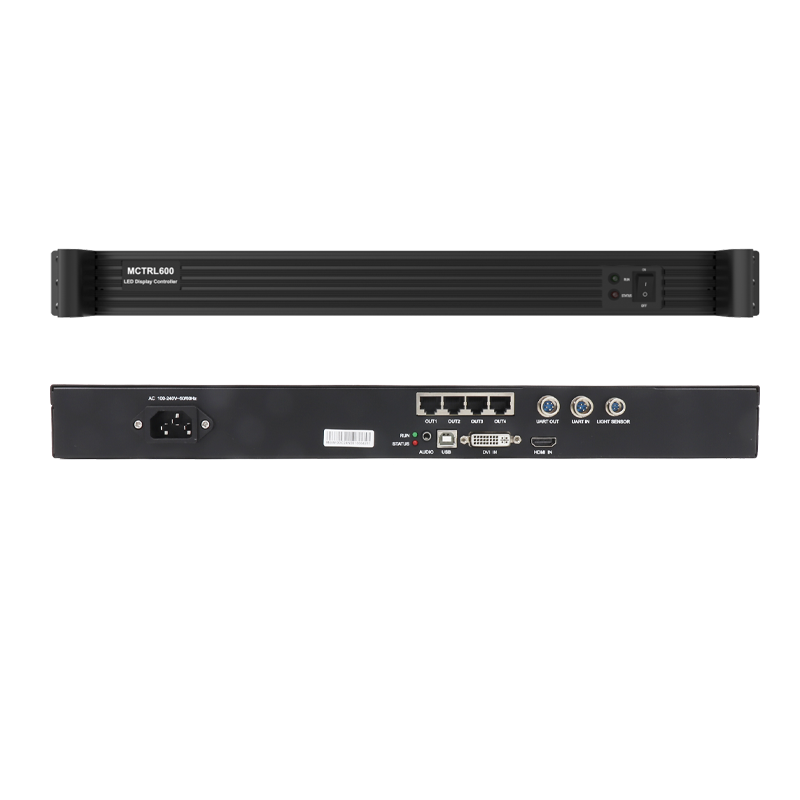

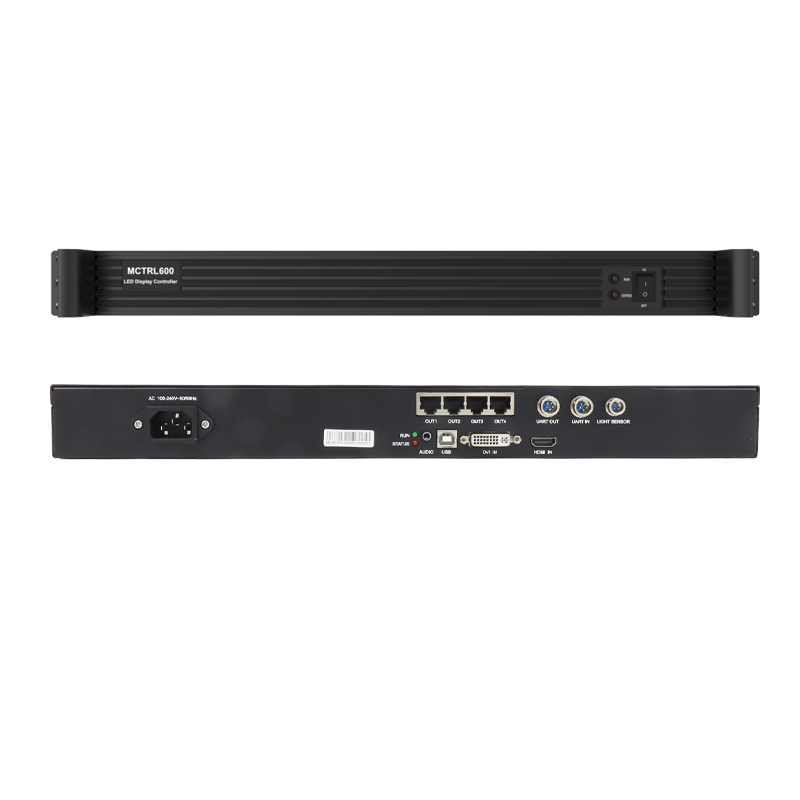

NOVASTAR MCTRL 600
MCTRL600 Specifications
Key Features:
- Loading Capacity: Single-unit loading capacity of 1920×1200@60Hz.
- Cascading Support: Utilizes UART to cascade and control multiple units.
- Video Input Connectors:
- 12bit/10bit HDMI input
- DVI input
- HDMI input for external signal input
- HDCP Blue-Ray: Direct input support for Blue-Ray with HDCP.
- Video Source Loading Capacity:
- 8bit video source: 1920×1200@60Hz
- 12bit video source: 1440×900@60Hz
- Custom Resolutions: Supports resolutions up to 3840 pixels in both H and V resolution.
- Signal Formats Supported: RGB, YCrCb4:2:2, YCrCb4:4:4.
Applications:
- Rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.
Certifications:
- CE
- RoHS
- FCC
- EAC
- IC
Connector Details:
| Connector | Connector Name | Description |
|---|---|---|
| HDMI | HDMI Input | Supports 12bit/10bit HDMI video input |
| DVI | DVI Input | Supports DVI video input |
| HDMI | External Signal HDMI Input | For external signal video input |
| HDCP | Blue-Ray Input | Direct HDCP Blue-ray input support |
| RJ45 | Ethernet Output | For connecting to additional units in a cascading setup |
