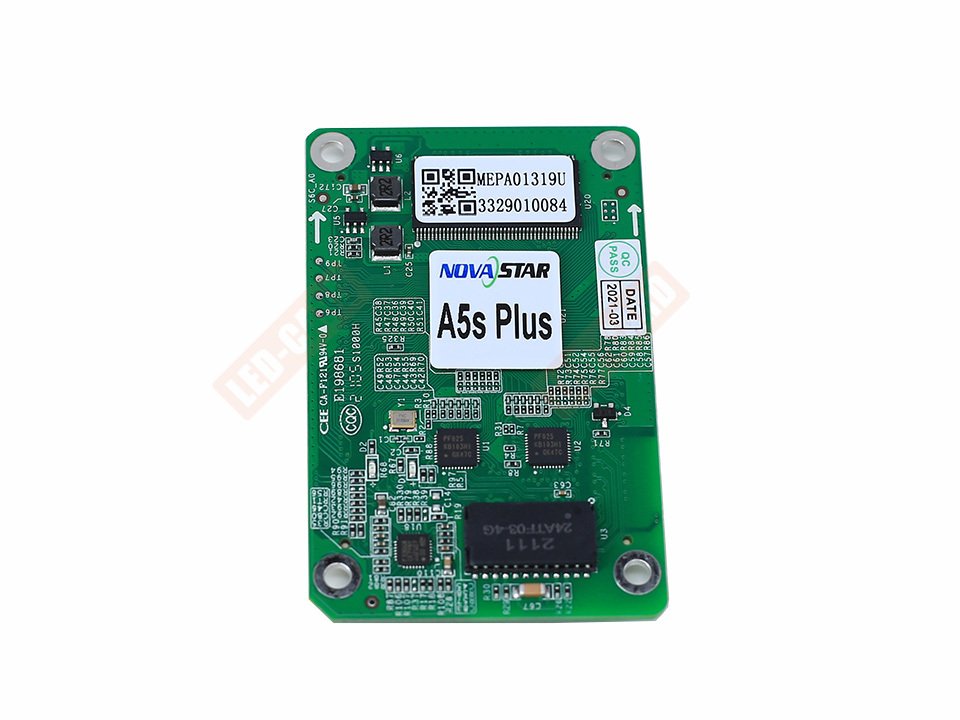

NOVASTAR A5S PLUS

Description

The A5s Plus is a general small receiving card developed by NovaStar. A single A5s Plus loads up to 512×384 pixels (NovaLCT V5.3.1 or later required). Supporting color management, 18Bit+, pixel level brightness and chroma calibration, individual Gamma adjustment for RGB, and 3D functions, the A5s Plus can greatly improve the display effect and user experience.
The A5s Plus uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the A5s Plus has improved electromagnetic compatibility and is suitable to various on-site setups.

Maximum Loading: 512*384 Pixel
Input voltage： DC 3.3V-5.5V
Current: 0.6A
power consumption: 3W
Temperature: –20°C to +70°C
Humidity: 10% RH to 90% RH, non-condensing
Size: 70.0 mm × 45.0 mm × 7.9 mm
Net weight： 16.2G
Certifications: RoHS, EMC Class B
