NOVASTAR A8S

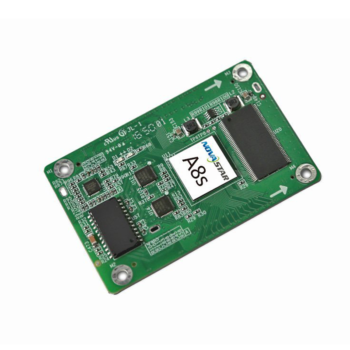

Novastar A8S Receiving Card
Description:
The Novastar A8S receiving card is a high-end component developed by NovaStar, designed for use in large LED display systems. It is compact in size but offers impressive loading capacity, supporting up to 512 x 256 (PWM IC) pixels per card. The A8S is highly compatible with multiple NovaStar controllers, including the independent MCTRL R5 and MCTRL4K, offering high flexibility in display control, such as rotation at any angle and HDR10 compliant video input support.
Key Features:
- Large Loading Capacity: Supports up to 512 x 256 pixels per card, providing the capacity needed for high-resolution displays.
- HDR10 Support: The A8S works with the MCTRL4K controller, supporting HDR10-compliant video input to ensure larger dynamic brightness range and a wider color space for smoother image quality.
- Pixel Level Calibration: When used with NovaLCT and NovaCLB, the A8S supports pixel-level brightness and chroma calibration, ensuring consistent color and image quality across the entire display.
- Image Rotation: Supports image rotation in 90° increments, allowing for flexible display configurations and enriching the viewing experience.
- Optimized for Deployment and Maintenance: Designed to simplify deployment, improve operational stability, and enhance the efficiency of maintenance, making the user experience smoother and more efficient.
Software and Hardware Design:
The design of the A8S receiving card focuses on ease of deployment, stability during operation, and efficiency in maintenance. Its compatibility with NovaStar's controllers and calibration tools makes it an excellent choice for users looking to achieve high-quality, consistent LED display performance.
Parameter:
Parameter | Value |
---|---|
Maximum Loading Capacity | 512 x 256 (PWM IC) |
Input Voltage | DC 3.3 V–5.5 V |
Rated Current | 0.5 A |
Rated Power Consumption | 2.5 W |
Operating Temperature | -20°C–70°C |
Storage Temperature | -25°C–125°C |
Operating Humidity | 10% RH–90% RH |
Dimensions | 80.0 mm × 45.0 mm × 9.1 mm |
Net Weight | 22.3 g |
Certifications | RoHS, EMC Class B |
Packing | Antistatic bag and anti-collision foam for each card; 40 cards per packing box |
Packing Box Dimensions | 378 mm × 190 mm × 120 mm |
