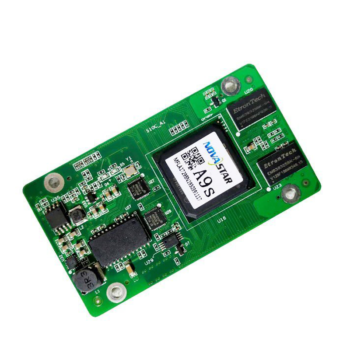

Novastar A9S High-end Large LED Display Screen Receiving Card is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 (PWM IC) pixels.

Novastar A9S High-end Large LED Display Screen Receiving Card Features:

Advanced hardware design:

  • The small hardware footprint is suitable to applications with limited cabinet space and small pixel pitch.
  • Uses dust-resistant high-density connector to limit effects of dust and vibration, resulting in high stability and reliability.
  • Integrated network transformer features simple design and improved magnetic compatibility, helping user’s products to successfully pass the EMC certification.


Useful software design:

  • Supports LVDS transmission (supported by dedicated firmware program).
  • Supports smart module (supported by dedicated firmware program).
  • Supports quick seam correction.
  • Supports 3D function.
  • Supports auto module calibration.
  • Supports Mapping function.
  • Supports setting of pre-stored image on receiving card.
  • Supports management of module’s Flash.
  • Supports voltage and temperature monitoring of card without use of peripherals.
  • Supports monitoring of Ethernet cable communication status (supported by dedicated firmware program).
  • Supports 5-pin LCD module.
  • Supports image rotation in 90° increments.



Novastar A9S High-end Large LED Display Screen Receiving Card Parameter:

Input voltage DC 3.3 V–5.5 V
Rated current 0.5 A
Rated power consumption 2.5 W
Operating temperature -20°C–70°C
Storage temperature -25°C–125°C
Operating humidity 10% RH–90% RH
Dimensions 80.0 mm × 45.0 mm × 9.1 mm
Net weight 22.3 g
Certifications RoHS
EMC Class B
Packing An antistatic bag and anti-collision foam are provided for each receiving card.
Dimensions of the packing box: 378 mm × 190 mm × 120 mm. Each box contains 40 receiving cards.
