NovaStar AXS_HUB75E

AXS Series HUB Card

Description:

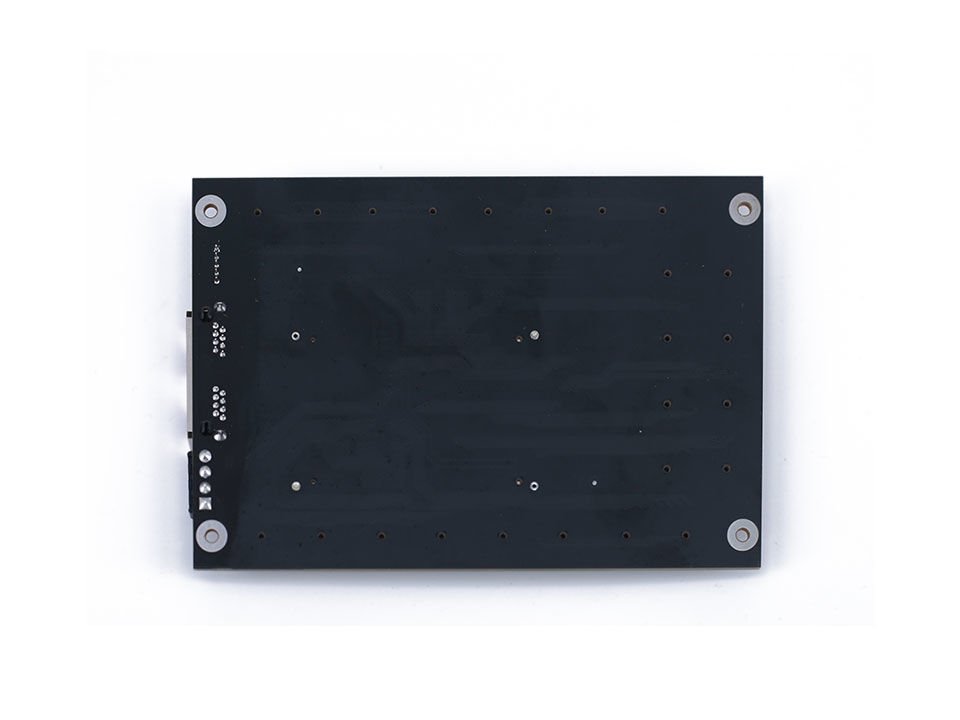

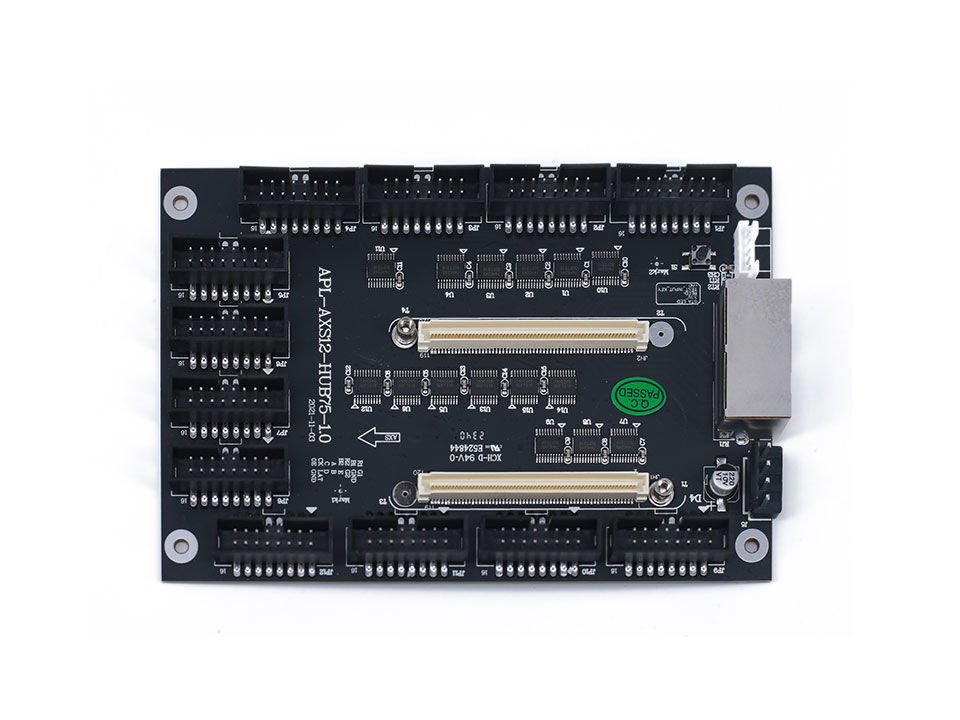

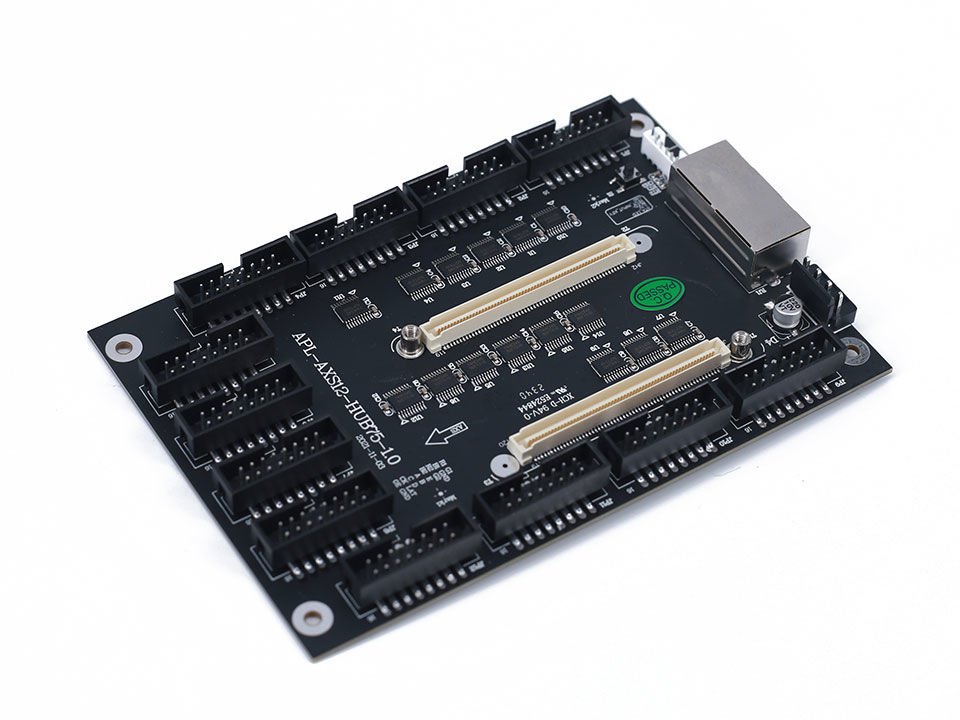

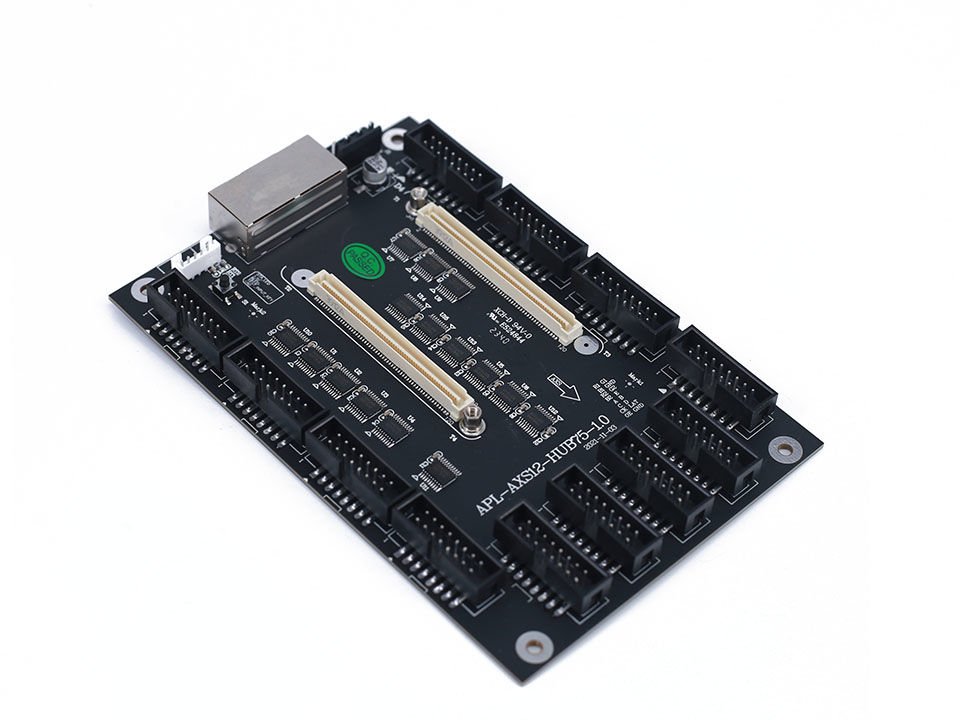

The AXS series is a HUB Card that facilitates the connection of Novastar A series cards (A5, A7, A10 etc.) and Colorlight K series (K5, K8, K9, K10 etc.) to LED Modules.

It has 16 ports of HUB75, the same size and mounting holes as the standard cards, so it can be used with ease.

Key Features:

• 16 ports of HUB75
• Same size and mounting holes as standard cards
• Processes RGB signals
• Integrates multiple LED display modules in a single networked system
• Highly compatible with Novastar and Colorlight products
• Supports 1-32 scan

HUB75E Interface Definition:

• 1 R1                  G1 2
• 3 B1                  GND 4
• 5 R2                  G2 6
• 7 B2                  E1 8
• 9 A1                  BB1 10
• 11 C1                  D1 12
• 13 CLK1            LAT1 14
• 15 OE1             GND 16
