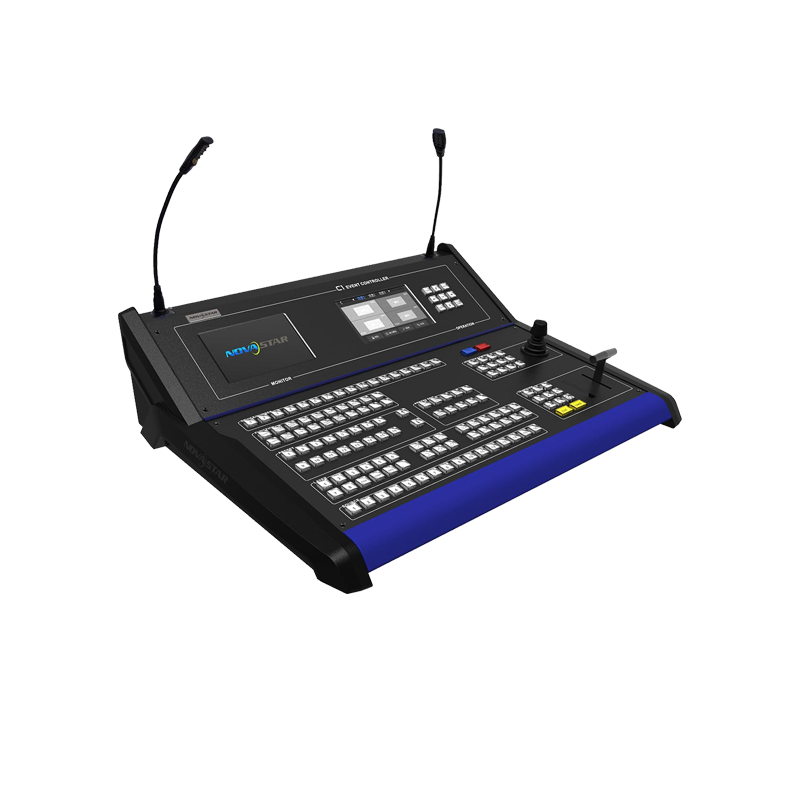

C1 Video Control Console

Overview:

The C1 Video Control Console is specially designed for controlling Novastar’s terminal video processing products, such as the J series, and is primarily used for live stage control. The console features dual LCD screens for efficient operation and monitoring, equipped with a joystick, T-Bar, and lighted buttons for easy handling of video sources during live events.

Key Features:

• Two LCD screens: One for monitoring input sources, and the other for touch-based operation and control.
• Easy-to-use with cool lighted buttons, a highly sensitive joystick, and a T-Bar for seamless operation during live events.
• Control of NovaStar video splicing processors and various visual settings like screen mosaics, image quality adjustment, BKG settings, EDID settings, and switching to blackout with a single button press.
• Supports up to 32 presets with options for preset copying, template use, customization, and preset data management (including cleanup and locking areas).
• Handles up to 8 layers and 1 BKG with support for layer shaping, editing, transitions, and more.
• Provides 13 transition effects and adjustable durations for smooth video switching.
• Advanced joystick functionality for layer adjustments, including layer position, size, and sensitivity, and support for fade transition effects via the T-Bar.
• Remote or live control via RJ45 network port for terminal video processors.

Ports and Button Description:

• Ethernet (RJ45): 1 port for remote control via network.
• USB: 1 port for program updates or connecting to the upper computer.
• U-DISK: 1 port for importing files from a USB drive.
• Monitor: 1 HDMI preview connector for connecting to the terminal's HDMI preview; 1 HDMI loop output for displaying terminal previews on other devices.
• RS232: 1 control connector for connecting to the upper computer.
• Reset Button: 1 pinhole reset button to reset and restart the C1.

Overall Specifications:

• Input Power: AC 100~240V, 50/60Hz
• Power Consumption: 50W
• Operating Temperature: 0°C–50°C
• Storage Temperature: -20°C–60°C
• Humidity: 0%–95% RH
• Dimensions: 541.46 mm × 649.90 mm × 204.46 mm
• Weight: 14 kg
