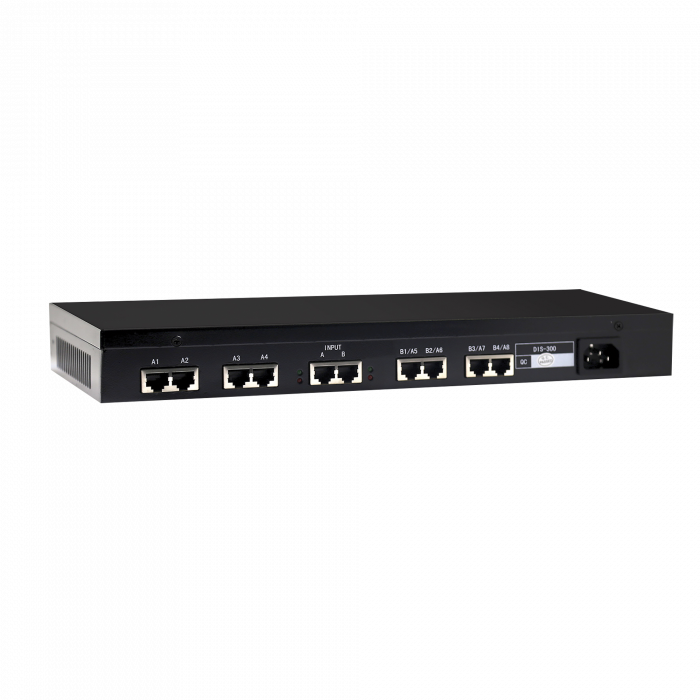

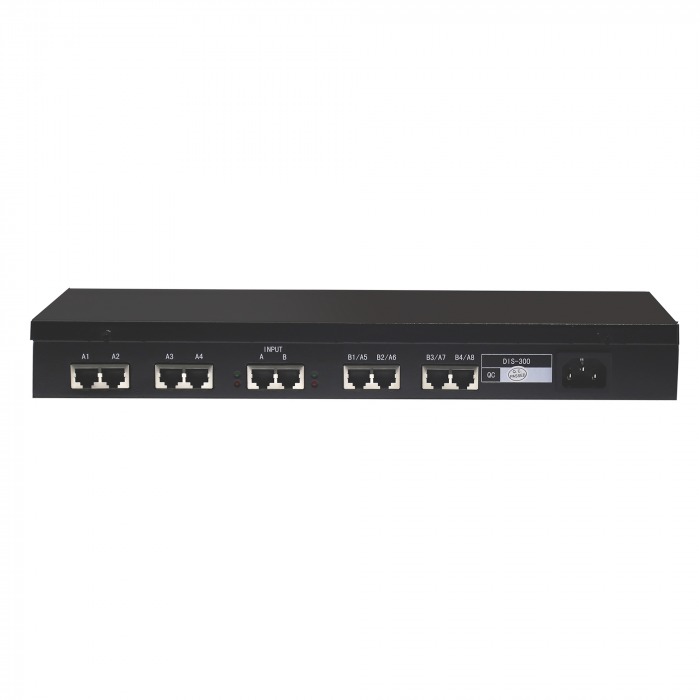

Description of the NovaStar DIS301

Hardware Features:

Outputs:

• Main Outputs: 8

Control and Programming:

• Control System: Novastar
• Port Mapping: Software Based

Electrical Specifications and Connections:

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 5.7 W
• Power Connector In: IEC
• Data Connector In: RJ45
• Data Connector Out: RJ45

Mechanical Specifications:

• Height (Without Handles): 45 mm (1.772″)
• Width (Without Handles): 356 mm (14.016″)
• Depth (Without Handles): 171 mm (6.732″)
• Weight: 1.16 kg (2.557 lb)
• IP Rating: IP20 (indoor use only)
• Housing: Aluminium
• Colour: Black

Product Properties:

• Cooling: Convection

Thermal Specifications:

• Maximum Ambient Temperature: 75 °C (167 °F)
• Minimum Ambient Temperature: -20 °C (-4 °F)
• Operating Humidity: 0-95 %rH

Included Items:

• Included Cables: IEC cable
