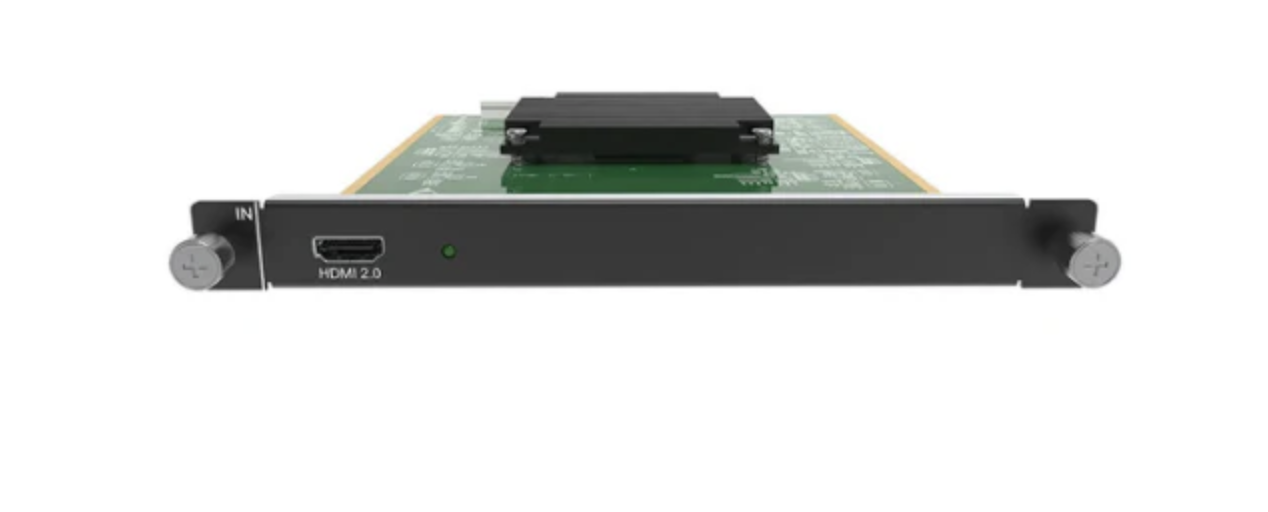

NOVASTAR H_1xHDMI2.0 INPUT CARD

H_1xHDMI2.0 1xDP1.2 Input CardVideo input card for the H-series controllers.

1x HDMI 2.0:

• Backwards compatible with HDMI 1.4 & HDMI 1.3
• Max. Resolution: 4096×2160@60Hz or 8192×1080@60Hz
• HDCP 2.2 compatible
• Custom EDID's:
• Max. Width: 4092 pixels (4092×2261@60Hz)
• Max. Height: 4095 pixels (2188×4095@60Hz)

1x DP 1.2:

• Backwards compatible with DP 1.1
• Max. Resolution: 4096×2160@60Hz or 8192×1080@60Hz
• HDCP 2.2 compatible
• Custom EDID's:
• Max. Width: 8192 pixels (8192×1146@60Hz)
• Max. Height: 4095 pixels (2188×4095@60Hz)

Hint:

Only one video input can be used at a time
Changing the video input has no effect on added layers or presets.
