NOVASTAR H_4xDVI INPUT CARD
Description

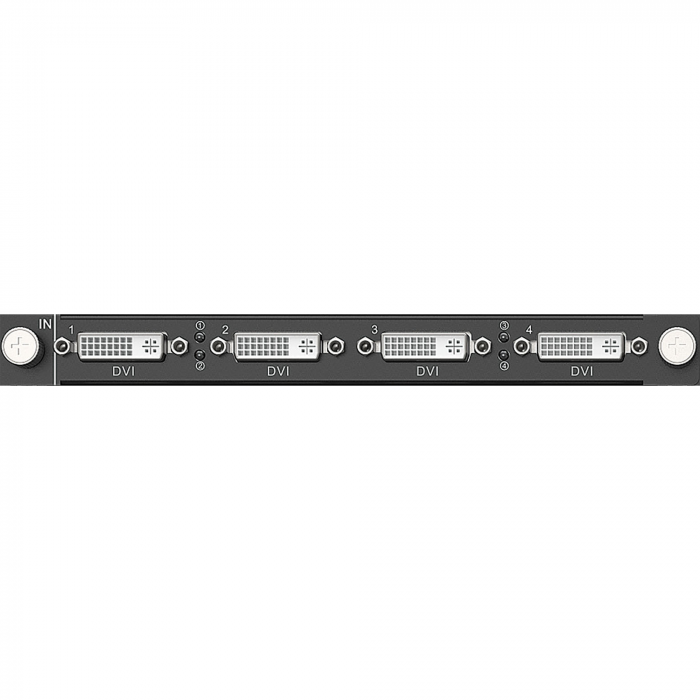

H_4xDVI Input Card
Video input card for the controllers of the H series.
Single Link Mode:
- All four ports are used as inputs.
- Supported resolution per input: Min. 800×600@60Hz, Max. 2048×1152@60Hz
- Custom EDIDs:
- Max width: 2560 pixels (2560×972@60Hz)
- Max height: 2560 pixels (884×2560@60Hz)
Dual Link Mode:
- Ports 2 and 4 are used as inputs, while Ports 1 and 3 are unavailable.
- Supported resolution per input: Min. 800×600@60Hz, Max. 3840×1080@60Hz
- Custom EDIDs:
- Max width: 4096 pixels (4096×1124@60Hz)
- Max height: 4096 pixels (1014×4095@60Hz)
