NOVASTAR H15 SPLICER MAIN CASE
H15 Videowall Splicer
H_4*DVI input card Plug-in input card
H_4*HDMI input card Plug-in input card
H_1*HDMI2.0+1*DP1.2 input card Plug-in input card
H_1*HDMI2.0 input card Plug-in input card
H_800W Power Supplier Power Supplier

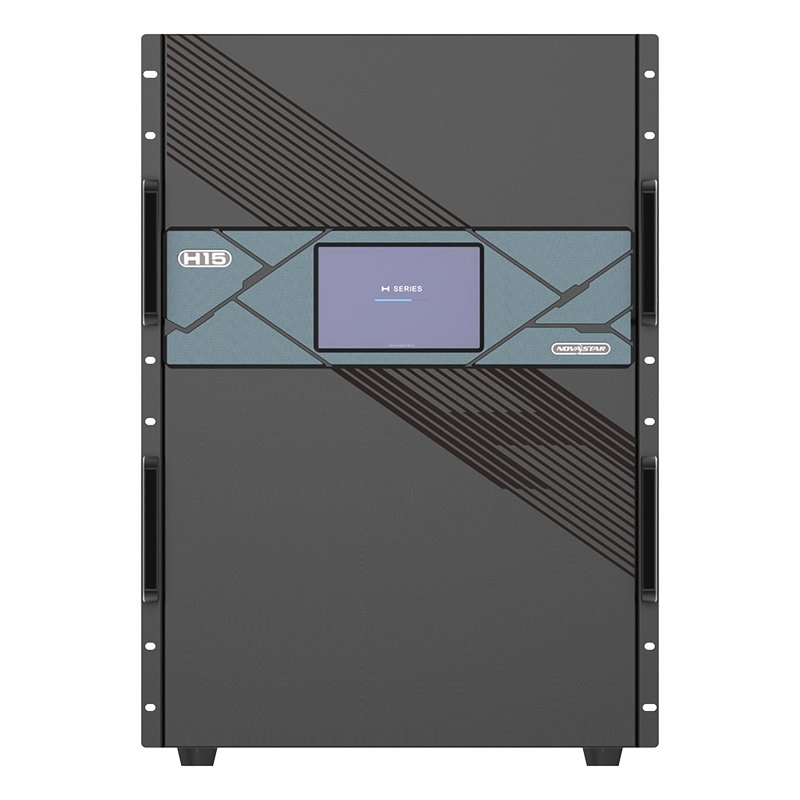

The H15 is NovaStar's latest generation of video wall splicers, featuring outstanding image quality and designed specifically for fine-pitch LED displays. The H15 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H15 can be used in a wide range of applications.
Hardware Features
- Two different types of 4K Sending Cards:
- H_20xRJ45: Manages up to 13 million pixels
- H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
- Different configurations possible on one Sending Card:
- 4x 2K×1K@60Hz
- 2x 4K×1K@60Hz
- 1x 4K×2K@60Hz
- Online monitoring for all input & output cards
- "Hot-Swap" function for all in- & output cards
- IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
- Automatic decryption of HDCP protected sources
- multi-screen management
- web control
specifications:
- Max. Number of input cards: 30
- Max. Number of input channels: 120
- Max. Number of output cards: 10
- Max. Loading Capacity: 65,000,000 Pixel
- Max. Number of layers: 160
general specifications:
- Supply voltage: AC 100-240V, 50/60HZ
- Power consumption: 450Watt
- Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
- Weight: 35kg
ATTENTION: This item is an enclosure only. All input/output cards must be ordered separately.
