Description of the

H5 Videowall Splicer

H_4*DVI input card Plug-in input card
H_4*HDMI input card Plug-in input card
H_1*HDMI2.0+1*DP1.2 input card Plug-in input card
H_1*HDMI2.0 input card Plug-in input card

H_2*HDMI2.0 input card  Plug-in input card（Specialized designed for H15)
H_2xRJ45 IP input card Plug-in input card
H_4*3G/SDI input card Plug-in input card
H_2*CVBS+2*VGA input card Plug-in input card
H_1*12G/SDI input card Plug-in input card
H_4*DVI output card Plug-in output card
H_4*HDMI output card Plug-in output card
H_1*HDMI2.0 output card Plug-in output card
H_16*RJ45+2*Fiber sending card 16 Ports Sending Subcard
H_20*RJ45 sending card 20 Ports Sending Subcard
H_2xRJ45+1xHDMI1.3 monitoring card RJ45&Monitoring Subcard
H_800W Power Supplier Power Supplier

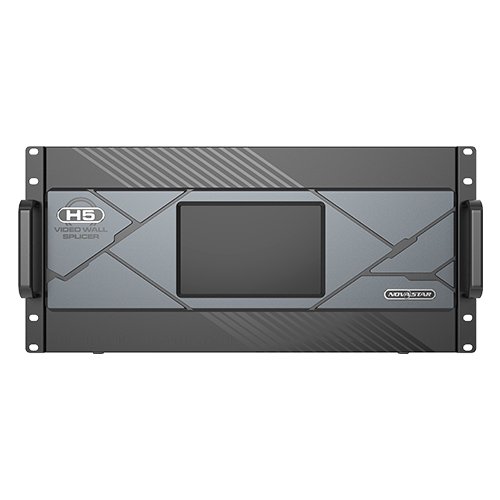

The H5 is NovaStar's latest generation of video wall splicers, featuring superior image quality and designed specifically for fine pitch LED displays. The H5 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H5 can be used in a wide range of applications.

Hardware Features

• Two different types of 4K Sending Cards:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Different configurations possible on one Sending Card:
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz
• Online monitoring for all input & output cards
• "Hot-Swap" function for all in- & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
• Automatic decryption of HDCP protected sources
• multi-screen management
• web control

specifications:

• Max. Number of input cards: 10
• Max. Number of input channels: 40
• Max. Number of output cards: 3
• Max. Loading Capacity: 39,000,000 Pixel
• Max. Number of layers: 48

general specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Power consumption: 400Watt
• Dimensions: 482.6 x 532.8 x 228.2mm (WxDxH)
• Weight: 25kg
