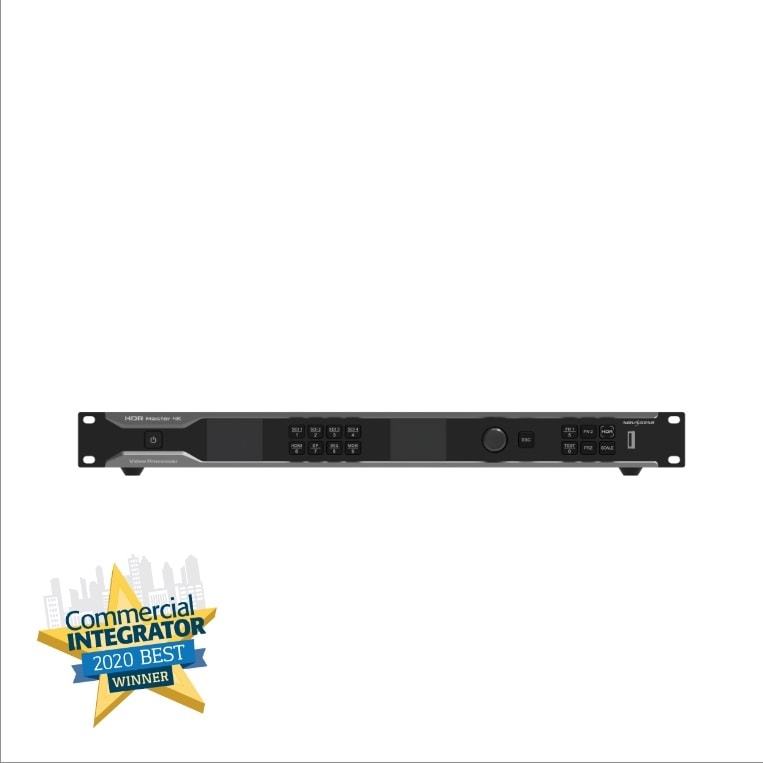

HDR Master 4K Video Processor

The HDR Master 4K is a video processor designed to convert SDR content into HDR format. By analyzing the SDR content and intelligently filling in missing details, the HDR Master 4K enhances the dynamic range of brightness, color gamut, and color depth to HDR standards. This process results in the conversion of SDR video into HDR10 format, providing richer bright and dark details, a wider color spectrum, and enhanced brightness. It offers full 4K×2K@60Hz input and output connectors, with high stability and processing capabilities, supporting SDI mosaic and long-distance optical fiber transmission.

Features:

• 1 pluggable input card
• 1 × DP 1.2, 1 × HDMI 2.0, and 4 × 12G-SDI inputs
• 3G-SDI input mosaic
• Supports up to six 4K×2K@60Hz video inputs simultaneously
• 2 pluggable output cards for synchronous output
• One output card with 1 × HDMI 2.0 and 4 × 10G optical fiber ports
• One output card with 1 × HDMI 2.0 and 4 × 12G-SDI output connectors
• 3G-SDI output mosaic
• Supports SDR to HDR10 conversion

Input Card Specifications:

HDMI 2.0

• 1 × HDMI 2.0 input (backward compatible with HDMI 1.4 and HDMI 1.3)
• Resolution: Up to 4K×2K@60Hz or 8K×1K@60Hz
• 1080i/576i/480i deinterlacing
• HDCP 2.2 and HDCP 1.4 compliant
• Supports HDR10 and HLG
• Max width: 8192 pixels, max height: 4000 pixels

DP 1.2

• 1 × DP 1.2 input (backward compatible with DP 1.1)
• Resolution: Up to 4K×2K@60Hz or 8K×1K@60Hz
• 1080i/576i/480i deinterlacing
• HDCP 1.3 compliant
• Max width: 8192 pixels, max height: 4000 pixels

12G-SDI

• 4 × 12G-SDI inputs (backward compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI)
• Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD)
• Resolution: Up to 4K×2K@60Hz
• For 3G-SDI, HD-SDI or SD-SDI inputs, SDI mosaic input is supported

Output Card Specifications:

1× HDMI 2.0 + 4× Fiber Output Card

• 1 × HDMI 2.0 output (HDR10 supported)
• Resolution: Up to 4K×2K@60Hz
• Max width: 8192 pixels, max height: 4000 pixels
• 4 × 10G optical fiber ports
• OPT 1 and OPT 2 copy the output on HDMI 2.0
• OPT 3 and OPT 4 copy the outputs on OPT 1 and OPT 2 respectively

4× 12G SDI + 1× HDMI 2.0 Process Card

• 1 × HDMI 2.0 output (HDR10 supported)
• Resolution: Up to 4K×2K@60Hz
• 4 × 12G-SDI outputs (SDI mosaic output supported)
• For 3G-SDI, HD-SDI or SD-SDI outputs, SDI mosaic output is supported

Control Card Specifications:

• Ethernet: Gigabit Ethernet port for control PC connection
• USB: 2 × USB 2.0 (Type-A) for device updates and media import
• Control UI: Reserved
• Genlock: Sync source connection (IN for accept, LOOP for loop)
