Introduction

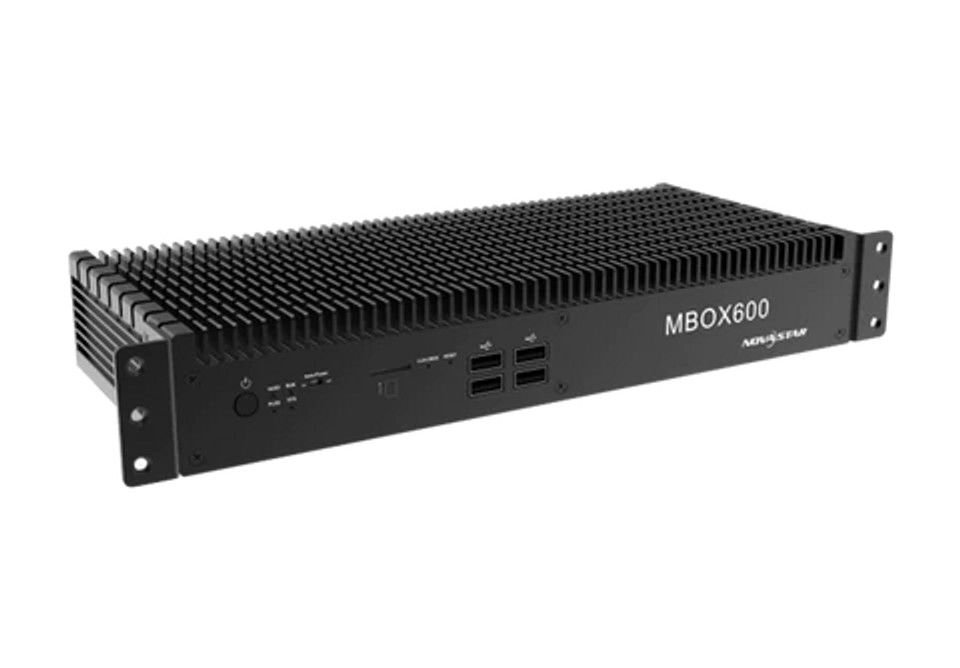

The MBOX600 is an LED display controller from NovaStar that integrates an industrial PC and sending capability. It is designed for scenarios where no PC is used for controlling LED displays, such as outdoor fixed displays. The MBOX600 can be connected to a mouse, keyboard, and monitor, allowing for software installation, screen configuration, solution playback, and more. Working with software applications, the MBOX600 enables remote publishing, local playback, playback preview, and other features to meet various needs.

Features:

• Loading capacity up to 2,300,000 pixels with a maximum width of 3840 pixels and a maximum height of 2560 pixels
• Supported resolutions:
  • 1440×900
  • 1920×1080
  • 1920×1200
  • 2048×1152
  • 2560×960
• 4x Gigabit Ethernet outputs
• 1x Stereo audio output
• 1x HDMI 1.3 output (for connecting to a monitor)
• 4x USB 2.0 and 2x USB 3.0 ports (for peripherals such as a mouse, keyboard, and USB drive)
• 1x Light sensor connector
• Automatic power-on functionality
• Support for wired Gigabit networks
• Equipped with Intel processors for powerful processing capacity
