NOVASTAR MCTRL 300
A single Mctrl300 send controller card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.
DVI video input, Audio transmission
Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent power supply
Certifications: CE, RoHS, EAC, FCC, IC
1 × DVI input
1 × audio input
1 × type-B USB control port
UART control ports to cascade devices for uniform control.
Dual Ethernet outputs.
Supports the new generation of NovaStar calibration technology, which is fast and efficient.
1 × light sensor connector.
Supports resolutions up to 2048×668@60Hz and downward compatibility.
Supports a variety of video formats.

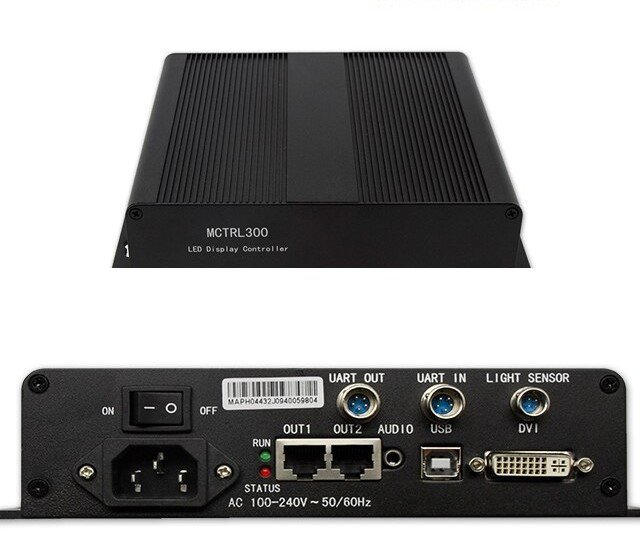

| Connector | Connector Name | Description |
| Input | DVI IN |
|
| AUDIO | Audio input connector | |
| Output | RJ45 × 2 |
|
| Function | LIGHT SENSOR | Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment. |
| Connector | Connector Name | Description |
| Control | UART IN/OUT | Input and output ports for cascading devices |
| USB | Type-B USB control port for connecting to PC | |
| Power | AC 100V-240V~50/60Hz | |
| Indicators | ||
| RUN | Device operating indicator. Working status:
|
|
| STATUS | Device power indicator. Working status:
|
|
