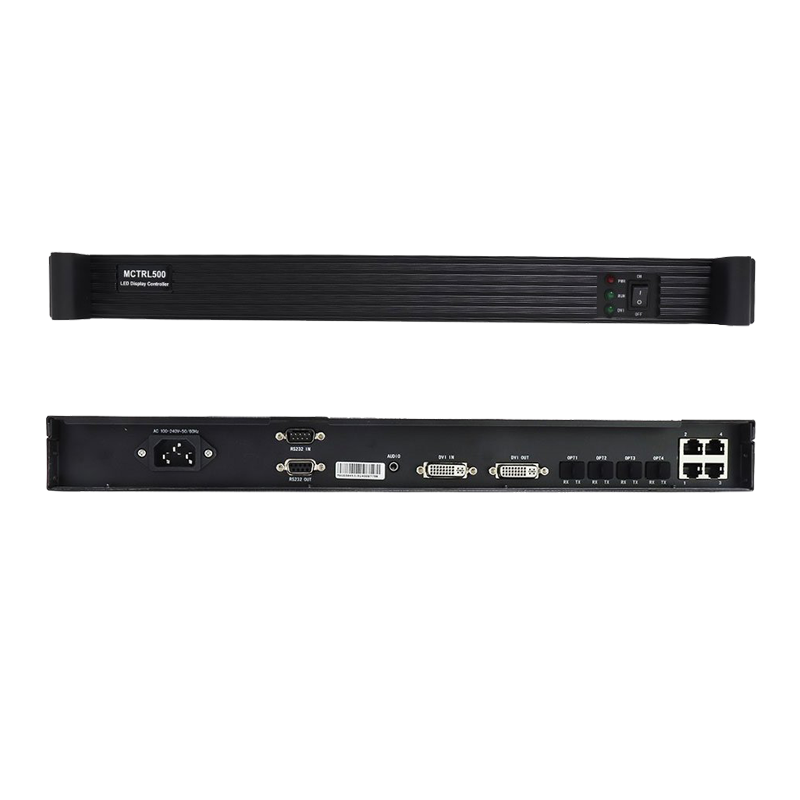

NOVASTAR MCTRL 500
Novastar Mctrl500 Send Controller Specifications
Key Features:
- Capacity: Supports maximum loading capacity of 1920×1200 or 2048×1152 @60Hz
- Input: DVI video input, Audio transmission
- Dual Ethernet Outputs: Dual-Ethernet cable hot backup and multiple controller hot backup
- Light Sensor Interface: Automatically adjusts screen brightness based on ambient light
- Independent Power Supply
- USB Control: USB Type-B control port to connect to PC
- Cascading Support: UART control ports for cascading devices for uniform control
- Certifications: CE, RoHS, EAC, FCC, IC
Connector Details:
| Connector | Connector Name | Description |
|---|---|---|
| DVI IN | Single-link DVI connector | Resolution up to 1920×1200@60Hz and downward compatible. Custom resolutions supported: 3840×600@60Hz, 800×2560@60Hz. |
| AUDIO | Audio input connector | For audio input. |
| RJ45 × 2 | Ethernet outputs | 2 Gigabit Ethernet outputs. Maximum loading capacity of a single Ethernet port: 650,000 pixels. Supports redundancy between Ethernet ports. |
| LIGHT SENSOR | Light Sensor | Connect to light sensor to monitor ambient brightness for automatic screen brightness adjustment. |
| UART IN/OUT | Cascading Control | Input and output ports for cascading devices. |
| USB | Type-B USB control port | For connecting to PC. |
Power and Indicators:
- Power Supply: AC 100V-240V~50/60Hz
- RUN Indicator:
- Flashing slowly: Video input unavailable
- Flashing normally: Video input available
- Flashing rapidly: The screen is displaying the startup image
- Breathing: Ethernet port redundancy has taken effect
- STATUS Indicator:
- On: The power supply is normal
- Off: The power is not supplied or the power supply is abnormal
