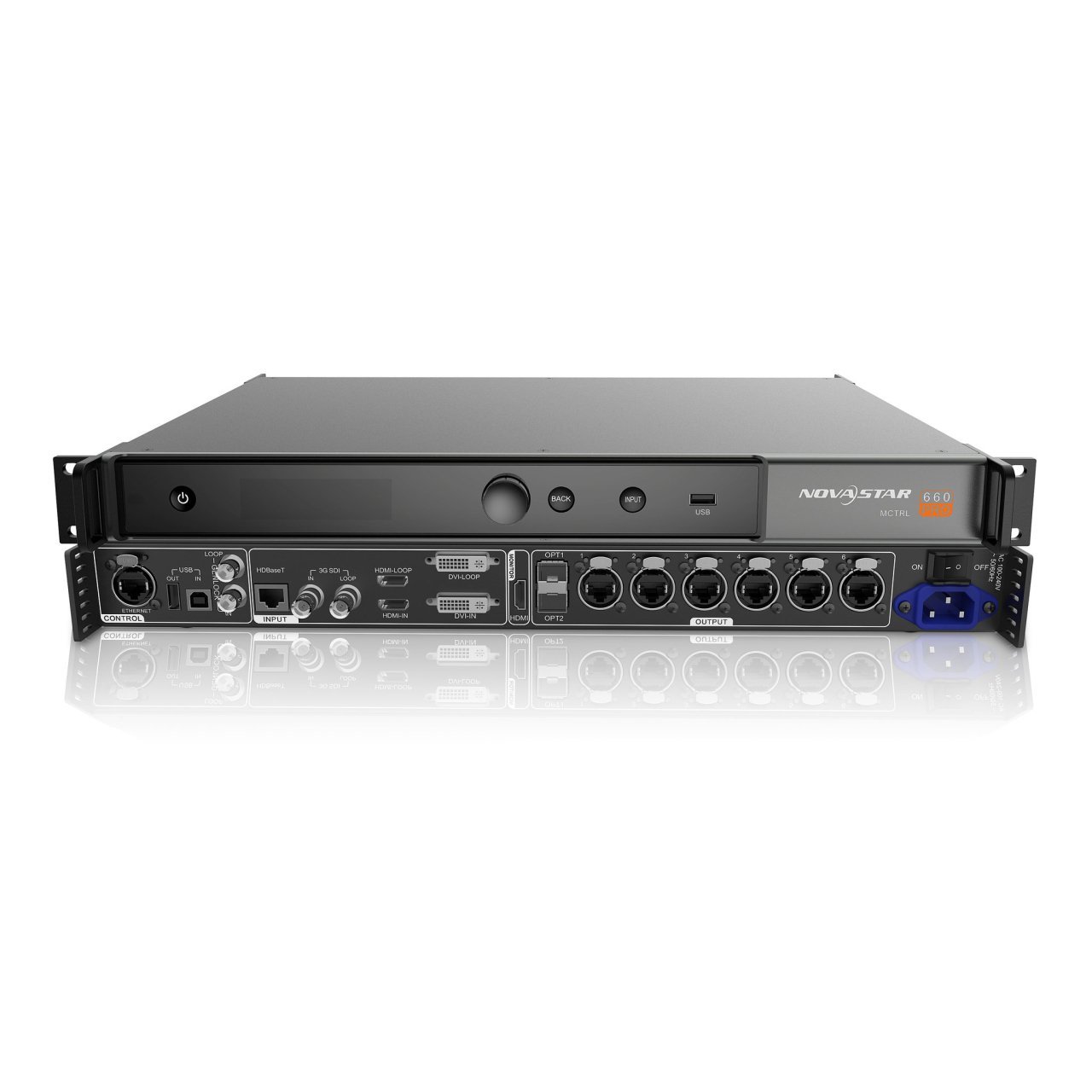

NOVASTAR MCTRL 660 PRO

MCTRL660 PRO Specifications

Key Features:

• Video Connectors:
  • Inputs: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × Single-link DVI
  • Outputs: 6 × Gigabit Ethernet ports, 2 × 10G optical ports
  • Loop Outputs: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVI LOOP
• Ultra-High Color Depth: Supports 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with input resolutions up to 1920×1080@60Hz, improving color expression by 4096 times compared to 8-bit inputs, producing richer, smoother images with clearer details.
• Gamma Adjustment: Individual Gamma adjustment for RGB when input is 10-bit or 12-bit, improving image quality by controlling non-uniformity and white balance offset in low grayscale.
• Low Latency: Less than 1 ms latency when the start position of the image is 0.
• Dual Working Modes: Functions as both a sending card and a fiber converter.
• Backup & Recovery: One-click backup and recovery for quick restoration of screen configurations in case of failure.
• Image Mirroring: Allows for spectacular stage effects with mirrored images.
• Auto LED Screen Configuration: Automatically configures LED screens for faster setup.
• Web Control: Remote web control available.
• Pixel-Level Calibration: Supports pixel-level brightness and chroma calibration.
• Input Monitoring: Monitors input signals for added convenience.
• Cascading Support: Multiple MCTRL660 PRO units can be cascaded for larger setups.

Applications:

• Rental and fixed installations such as concerts, live events, security monitoring centers, Olympic Games, and sports centers.
