NOVASTAR MCTRL R5
Novastar G4 Engine Controller Specifications
Key Features:
- Pixel Capacity: Up to 4,140,000 pixels per input
- Inputs:
- 1 × 6G-SDI
- 1 × Dual Link D-DVI
- 1 × HDMI 1.4
- Outputs:
- 8 × Gigabit Ethernet
- 2 × Fiber optic outputs
- Display Rotation: Supports display rotation at any angle
- Architecture: Innovative architecture enabling smart configuration and faster stage preparation
- Pixel-Level Calibration: Supports new generation of NovaStar pixel-level calibration technology for fast and efficient calibration
- Screen Brightness Adjustment: Quick and easy manual adjustment of screen brightness
- Firmware Updates: Supports firmware update via USB port on the front panel
- Cascading Support: Multiple controllers can be cascaded for uniform control

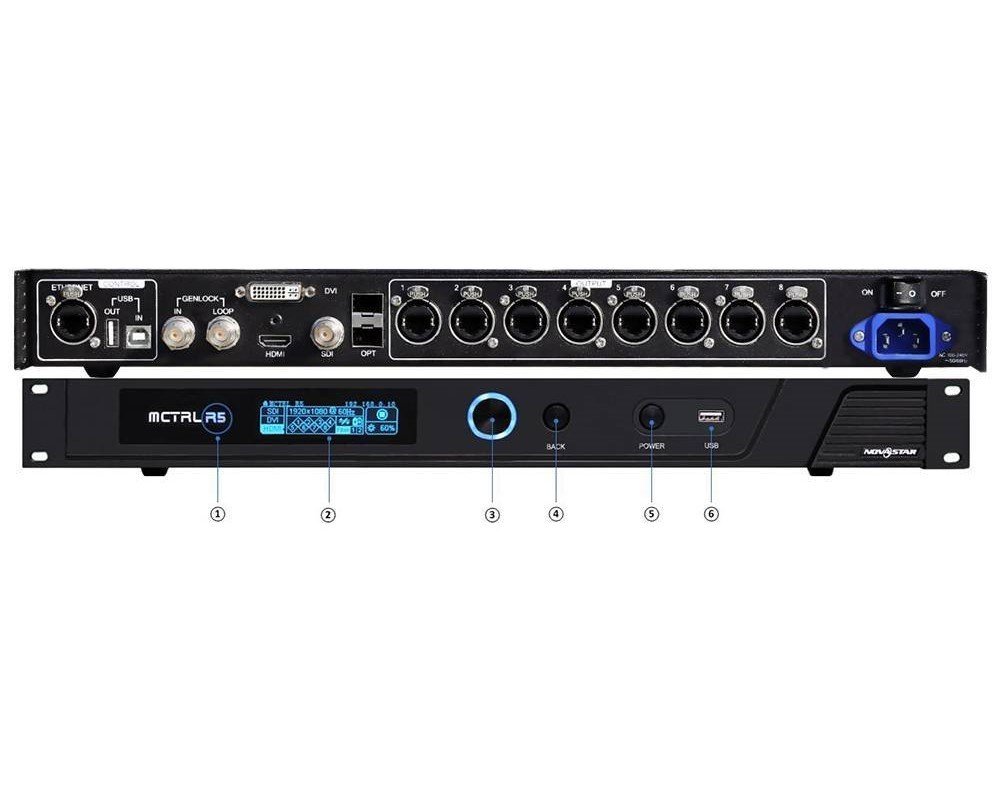

Connector Details:
| Connector | Connector Name | Description |
|---|---|---|
| 6G-SDI | SDI Input | For 6G-SDI video input |
| HDMI | HDMI 1.4 Input | For HDMI 1.4 video input |
| DVI | DVI Input | For DVI video input |
| RJ45 × 8 | Gigabit Ethernet Outputs | 8 × Neutrik (NE8FBH) Gigabit Ethernet outputs, with redundancy between ports |
| OPT1 × 2 | Fiber Optical Outputs | 2 × Fiber optic outputs. OPT1 serves as main, OPT2 as backup. |
| USB IN/OUT | USB Control | Input and output ports for cascading and controlling devices |
| GENLOCK IN/OUT | GENLOCK | GENLOCK synchronization signal for display synchronization with external source |
| ETHERNET | PC Connection | For connection to PC |
Power and Indicators:
- Power Supply: AC 100-240V~50/60Hz
- RUN Indicator:
- Flashing slowly: Video input unavailable
- Flashing normally: Video input available
- Flashing rapidly: Displaying startup image
- Breathing: Ethernet port redundancy active
- STATUS Indicator:
- On: Power supply is normal
- Off: Power not supplied or abnormal
