NOVASTAR MRV 328

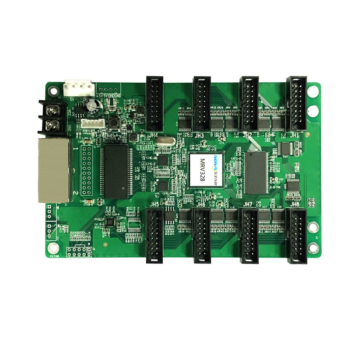

Novastar MRV328 Receiving Card
Description:
The Novastar MRV328 is an advanced receiving card designed for high-quality LED display systems. It supports up to 256x256 pixels and provides enhanced pixel-level brightness and chroma calibration, significantly improving display consistency and delivering a finer visual experience. The MRV328 is optimized for ease of deployment, stable operation, and efficient maintenance, making it an ideal choice for large-scale installations.
Key Features:
- Resolution Support: Supports up to 256x256 pixels, ideal for medium-sized LED displays.
- Pixel-Level Brightness & Chroma Calibration: Improves color consistency and brightness across the display, removing color discrepancies.
- Integrated HUB75 Connectors: Includes 8 standard HUB75 connectors, eliminating the need for an external HUB board.
- Gigabit Ethernet Port: Enables seamless communication and control through the Gigabit Ethernet port.
- Image Pre-Storage: Allows users to set images for startup and during periods without video signals (e.g., during Ethernet cable disconnection).
- Status Detection: Monitors and detects the temperature, voltage, Ethernet cable communication, and video source signals.
- LCD Module Support: Supports a 5-pin LCD module for enhanced user interaction and monitoring of system status.
- Configuration and Firmware Readback: Supports reading back the configuration and firmware version using NovaLCT software (V5.0.0 or later).
Hardware Design:
- HUB75 Connectors: Integrates 8 standard HUB75 connectors, eliminating the need for a separate HUB board.
- Gigabit Ethernet Port: Ensures high-speed communication between the receiving card and the PC.
Software Design:
- Pixel-Level Brightness & Chroma Calibration: Ensures uniformity across the entire screen by calibrating brightness and color for each pixel.
- Pre-Stored Image Setting: Configures startup images and fallback images when no signal is available.
- Status Detection: Monitors temperature, voltage, Ethernet communication, and video source signals for system stability.
- LCD Module Support: Compatible with NovaStar’s 5-pin LCD module for monitoring system health and operational statistics.
- Readback of Configuration & Firmware: Allows users to read back configuration files and firmware versions using NovaLCT (V5.0.0 or later).
Parameter:
| Feature | Description |
|---|---|
| Resolution Support | Supports up to 256x256 pixels. |
| Pixel-Level Brightness & Chroma Calibration | Improves color and brightness consistency across the display. |
| HUB75 Connectors | Includes 8 standard HUB75 connectors, eliminating the need for a HUB board. |
| Gigabit Ethernet Port | Supports high-speed data transmission with a PC. |
| Pre-Stored Image Setting | Configures images for display during startup or when the signal is absent. |
| Status Detection | Monitors the temperature, voltage, Ethernet communication, and video signal status. |
| LCD Module Support | Supports NovaStar’s 5-pin LCD module for displaying system status. |
| Configuration & Firmware Readback | Supports reading back the configuration and firmware versions using NovaLCT software (V5.0.0 or later). |
Application:
The MRV328 is widely used in LED display synchronous systems, which include LED displays, receiving cards, LED display controllers (optional), and other peripherals. The receiving card connects to the LED display through HUB connectors, and the system requires a computer to display images and text on the LED display.
