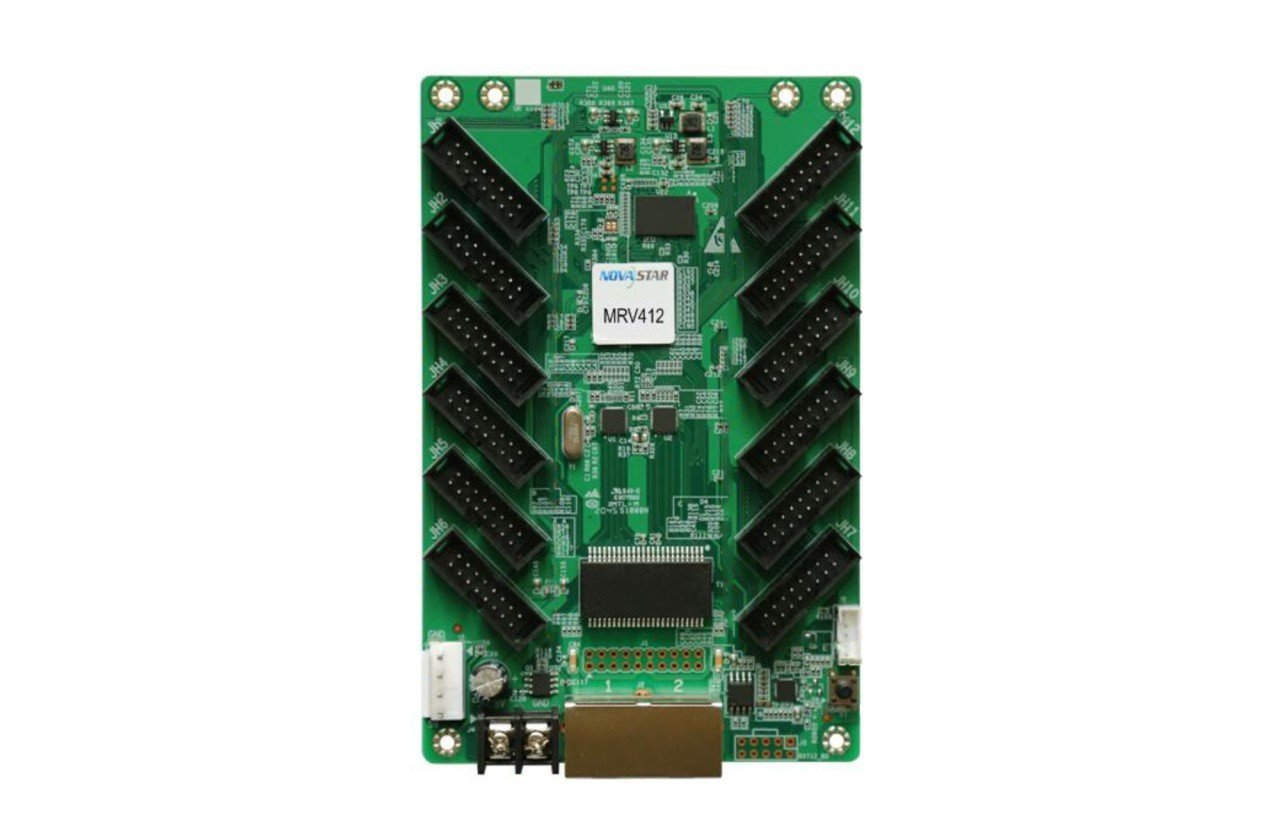

Novastar MRV412 LED Screen Video Receiving Card

Description:

The Novastar MRV412 is a highly advanced LED receiving card designed to deliver superior image quality and management for LED displays. With a range of features such as color management, pixel-level calibration, and support for 3D output, it ensures enhanced visual performance. It also offers comprehensive monitoring functions, firmware management, and easy adjustment for optimal display quality in a variety of environments.

Key Features:

  • Color Management: Switch between multiple color gamuts for precise color control.
  • 18Bit+: Enhance LED display grayscale by 4 times, avoiding grayscale loss in low brightness and ensuring smoother image rendering.
  • Pixel-Level Brightness & Chroma Calibration: Supports calibration to eliminate color discrepancies and improve consistency, resulting in better image quality.
  • Quick Adjustment of Dark or Bright Lines: Adjust dark or bright lines caused by module or cabinet splicing for improved visual experience.
  • 3D Function: Supports 3D output when paired with a compatible sending card.
  • Individual Gamma Adjustment for RGB: Allows for individual gamma adjustments of red, green, and blue channels for better low grayscale and white balance control.
  • Image Rotation in 90° Increments: Allows for display rotation in 90°, 180°, 270°, or 0° orientations.
  • Mapping Function: Display receiving card number and Ethernet port information to easily track connections and topology.
  • Pre-Stored Image Setting: Customizable startup image or fallback image for when video signals are unavailable.
  • Temperature & Voltage Monitoring: Monitor the receiving card’s temperature and voltage without needing external peripherals.
  • Cabinet LCD: LCD module in the cabinet displays temperature, voltage, and runtime information of the receiving card.
  • Bite Error Detection: Monitors Ethernet communication quality and tracks erroneous packets to help diagnose network issues. Requires NovaLCT V5.2.0 or later.
  • Firmware Program Readback: Allows for the saving of the receiving card firmware to a local computer. Requires NovaLCT V5.2.0 or later.
  • Configuration Parameter Readback: Allows for the saving of the receiving card's configuration parameters to a local computer.

Parameter:

Feature Description
Color Management Switch color gamuts for more precise color rendering.
18Bit+ Enhances grayscale by 4 times, improving low brightness performance.
Pixel-Level Brightness/Chroma Calibration Calibration on each LED to eliminate color discrepancies and improve consistency.
Quick Adjustment of Dark/Bright Lines Instant adjustments to eliminate splicing issues for better visuals.
3D Function Supports 3D output with compatible sending cards.
Gamma Adjustment Individual RGB gamma adjustment for better low grayscale and white balance control.
Image Rotation Allows image rotation in 90° increments.
Mapping Function Displays receiving card number and Ethernet port for easy mapping.
Pre-Stored Image Setting Custom startup or fallback image settings.
Monitoring Temperature and voltage monitoring without peripherals.
Cabinet LCD Displays receiving card temperature, voltage, and runtime information.
Bite Error Detection Monitors and records erroneous packets to troubleshoot communication issues.
Firmware Program Readback Allows for saving firmware program to a local computer.
Configuration Readback Allows for saving configuration parameters to a local computer.
