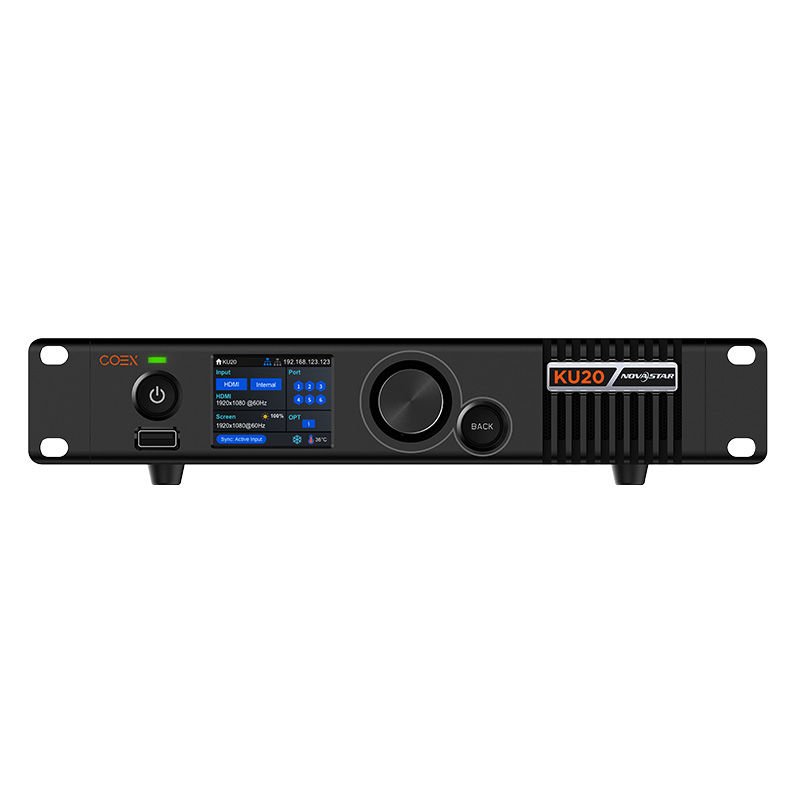

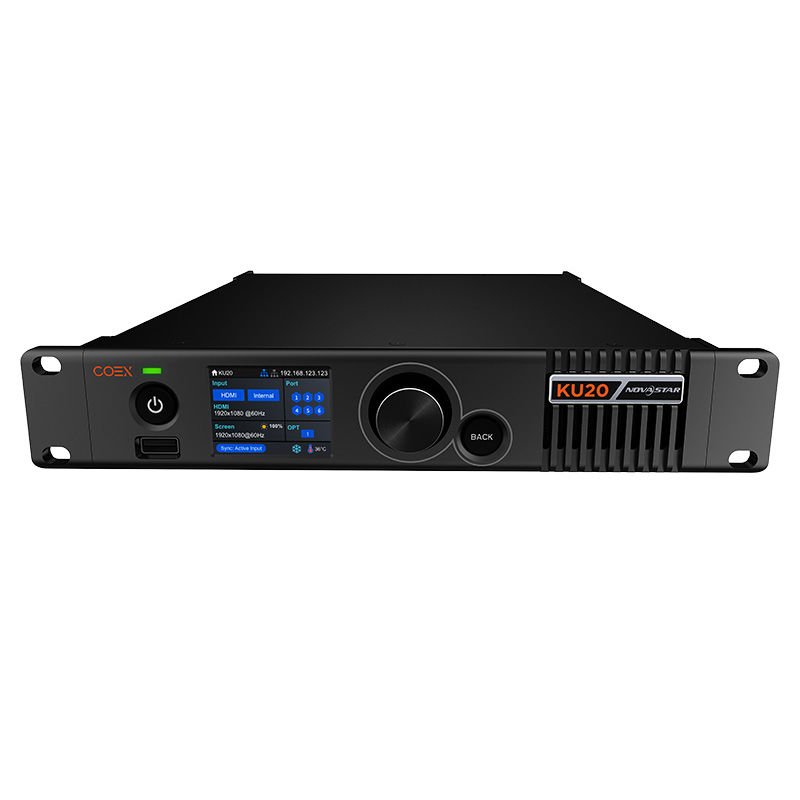

NovaStar KU20 Specifications

Overview:

The NovaStar KU20 is a versatile LED video processor offering excellent input/output options for advanced video applications. It supports custom EDID configurations, grayscale calibration, and pixel-level adjustments for brightness and chroma. With integrated cascading and low latency, it is designed to meet high-performance needs in professional environments.

Key Features:

• Input:
  • 1x HDMI 1.3 input (max. 1920×1200@60Hz; min. 800×600@60Hz)
  • Custom EDID support: Max width: 3840 (3840×600@60Hz); Max height: 2560 (800×2560@60Hz)

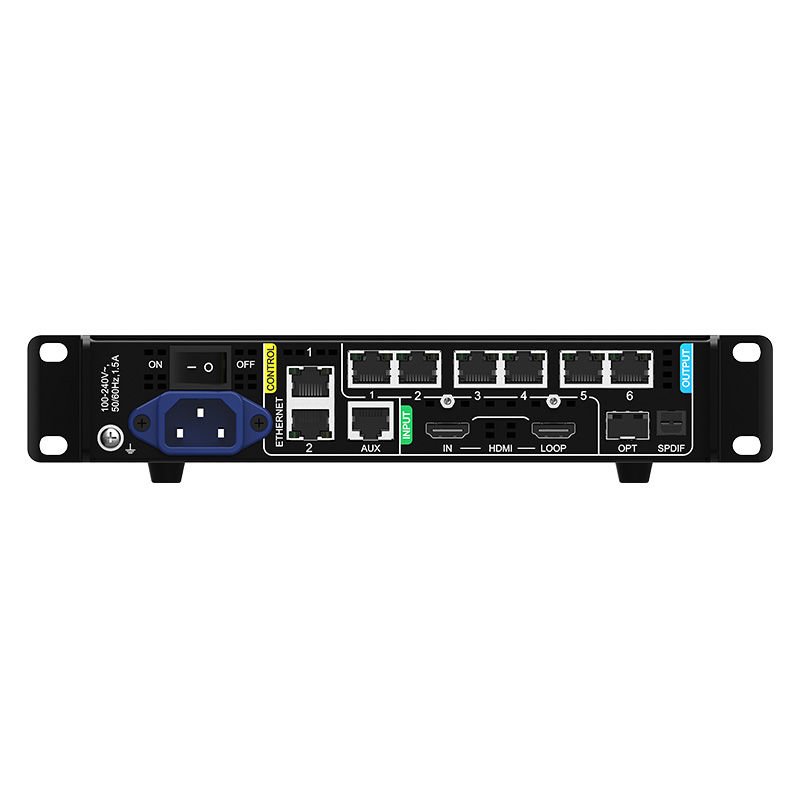

• Outputs:
  • 6x LED-Out (RJ45)
  • 8Bit@60Hz: 650,000 pixels
  • 10Bit@60Hz: 325,000 pixels (Only in combination with A10s Pro Receiving card)
  • 1x HDMI 1.3 Loop
  • 1x OPT-Out (10G)
  • 1x SPDIF (reserved)
• Additional Features:
  • Grayscale calibration
  • Pixel level brightness & chroma calibration
  • Low latency
  • Integrated network switch for cascading multiple devices

General Specifications:

• Supply Voltage: 100-240V~, 50/60Hz
• Dimensions: 254.3 x 50.6 x 290.0 mm (WxDxH)
• Power Consumption: 25W
• Weight: 2.1 kg
