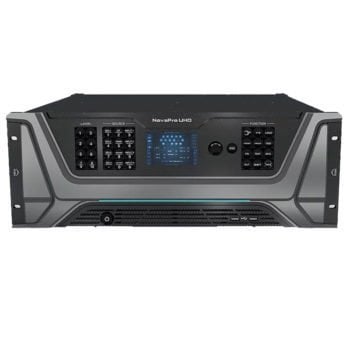

NOVASTAR NOVA PRO UHD

The NovaPro UHD video controller is a new all-in-one controller developed by Novastar. By integrating video processing, video control and LED screen configuration functions into one controller, this product is capable of receiving a variety of video signals, processing and sending images of resolutions up to ultra HD 4K×2K@60Hz.

The Novapro UHD pro control processor is equipped with industry-standard 4K connectors, and has some added new functions such as video rotation processing and video transition effects.

With the built-in Master VI smart platform, the NovaPro UHD video controller supports layer creation, property settings, and screen configuration via simple mouse, keyboard, and monitor operations.

The NovaPro UHD supports sending of processed video to LED display through Neutrik Ethernet port or fiber optical connectors. With powerful video processing and sending capabilities, this product is well suited for high-end rental applications, stage control systems, and fine-pitch LED displays.

A variety of input connectors: 4 × 12G-SDI connectors with loop output functions, 1 × HDMI 2.0 with loop output functions, 1 × DP 1.2, and 1 × USB playback port
1 × replaceable input card with four connectors,The input card can be SDI, DVI, HDMI or VGA.
8 × layers, 1 × OSD and 1 × LOGO, and BKG
2 × layers up to 4K×2K, 6 × layers up to 2K×1K,Layers can be scaled.

4K×2K OSD, cropping, transparency adjustment, dynamic/static images and texts supported OSD can be placed at any position.
Layer transparency adjustment, irregular layers, lwatermark layer, and layer overlapping and layer flipping supported
Layer priority adjustment by z-order
Up to 8K display width or height of a single device
Playback of programs stored in USB drive
MultiViewer monitoring settings, including monitoring of input sources, PVW, PGM, or mixed preview

Sending the preview content to a monitor through wired network
16 × Neutrik Ethernet outputs, 4 × 10G fiber optical outputs with copy and hot backup modes
Quick and advanced screen configurations
With the built-in smart platform Master VI, LED screen configuration, layer configuration and video playback can be easily performed via the connected mouse, keyboard and monitor.

10-bit processing of the input source
HDR function to make images finer and smoother
Powerful image processing capability to realize low latency from input to output
3D sending card function supported with an external emitter
Remote data transmission via a Gigabit Ethernet port or fiber optical connector
