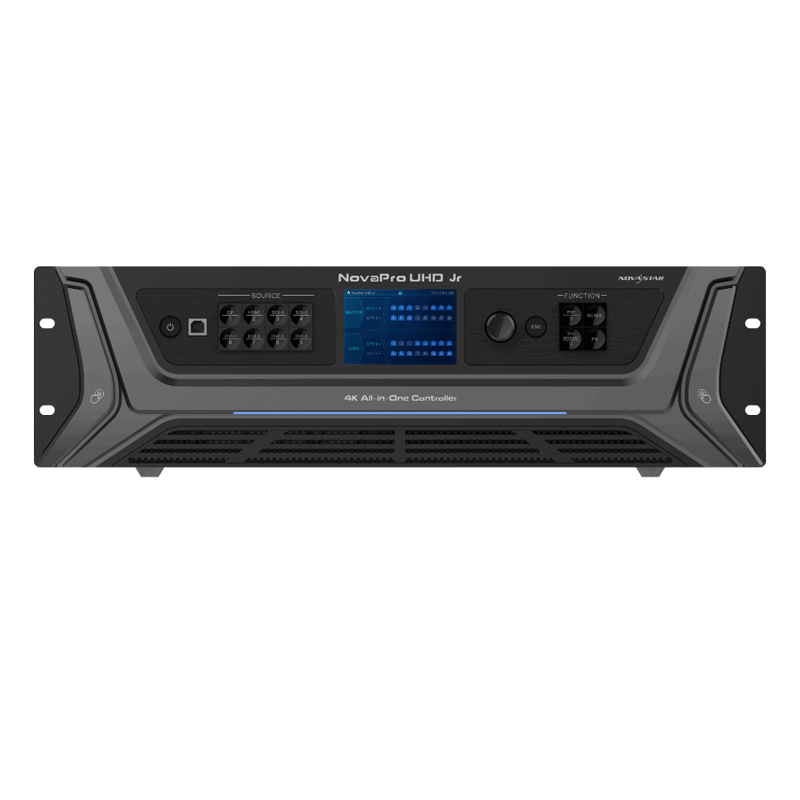

NovaPro UHD Jr Processor

Overview:

The NovaPro UHD Jr is an all-in-one video controller from Novastar, combining excellent video processing capabilities, sending card functions, and LED screen configuration. The device supports 4K×2K@60Hz image processing and sending capabilities, making it ideal for high-end rental applications, stage control systems, conference sites, exhibitions, and fine-pitch LED displays. Its powerful features and easy-to-use control via V-Can software make it a great choice for professionals seeking high-quality video display solutions.

Key Features:

Video Input and Output:

• Supports multiple input connectors: 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 (with loop output), and 2 × 12G-SDI (with loop output).
• Provides up to 16 × Neutrik Ethernet outputs and 4 × optical fiber outputs with a total loading capacity of 10,400,000 pixels.
• Maximum width of 16K and maximum height of 8K for large-scale displays.
• HDMI loop output and SDI loop output connectors for cascading and synchronization.
• Monitor output (HDMI) for display monitoring, resolution up to 1920×1080@60Hz.

Advanced Video Processing:

• Supports HDR output for clearer, more vivid images.
• Low-latency output when used with NovaStar Armor series receiving cards (A8/A8s/A9s/A10s Plus).
• Decimal frame rates supported: 23.98, 29.97, and 59.94.
• Personalized image scaling with three modes: full screen, pixel to pixel, and custom scaling.
• Customized background settings (pure color or image-based BKG).
• Capture function to save and use input source images as background images.

System Configuration and Control:

• V-Can smart control software for easy configuration and image mosaic effects.
• Supports up to 10 user presets for quick and convenient template usage.
• EDID management for custom and standard EDID support.
• Genlock in-loop for synchronization across multiple units.
• Supports image mosaic by connecting up to 4 NovaPro UHD Jr units via a video distributor for large displays.

Applications:

• Ideal for high-end rental applications, stage control systems, conference sites, and exhibitions.
• Suitable for fine-pitch LED displays requiring high-quality video processing and low latency.

Specifications:

Input:

• DVI (4): Input resolution up to 1920×1200@60Hz. DVI 1 and DVI 3 support dual-link with up to 3840×1080@60Hz resolution.
• 12G-SDI (2): Input resolution up to 4096×2160@60Hz.
• DP 1.2 (1): Input resolution up to 3840×2160@60Hz, HDCP 1.3 compliant.
• HDMI 2.0 (1): Input resolution up to 3840×2160@60Hz, supports HDCP 1.4 and HDCP 2.2.

Output:

• Ethernet Port (16): 16 × Neutrik Gigabit Ethernet output connectors.
• OPT (4): 10G optical connectors for data transmission and hot backup.
• HDMI 2.0 Loop (1): HDMI loop output connector for cascading devices.
• 12G-SDI Loop (2): SDI loop output connectors.
• Monitor (1): HDMI connector for output monitoring.

Control:

• Ethernet (1): For communication with PC or Web for device control.
• USB (Type-B) (1): For device control and image mosaic input.
• USB (Type-A) (1): For image mosaic output.
• RS232 (1): For control device connection.
• Genlock In-Loop (1): For synchronization across multiple units.
