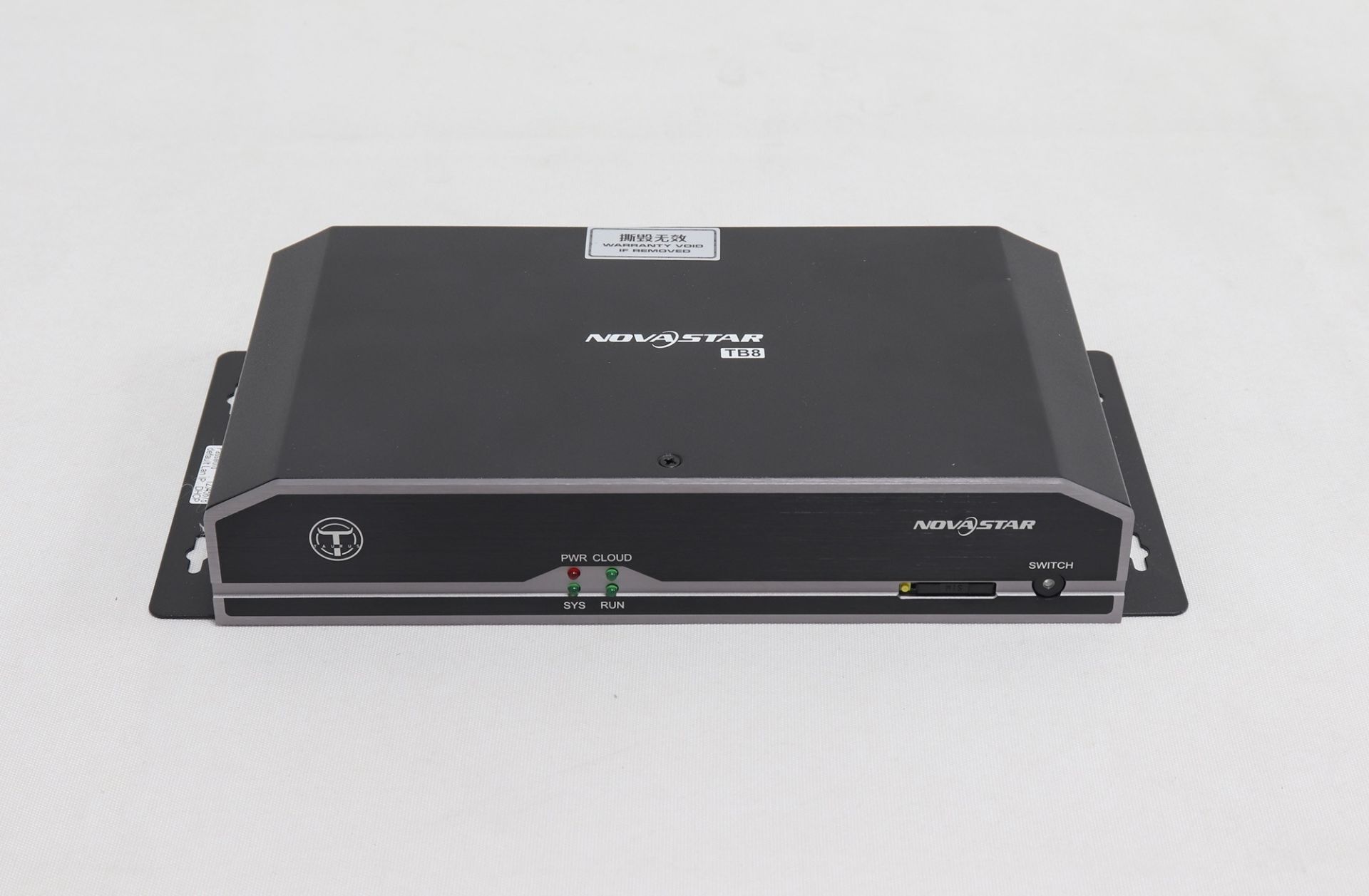

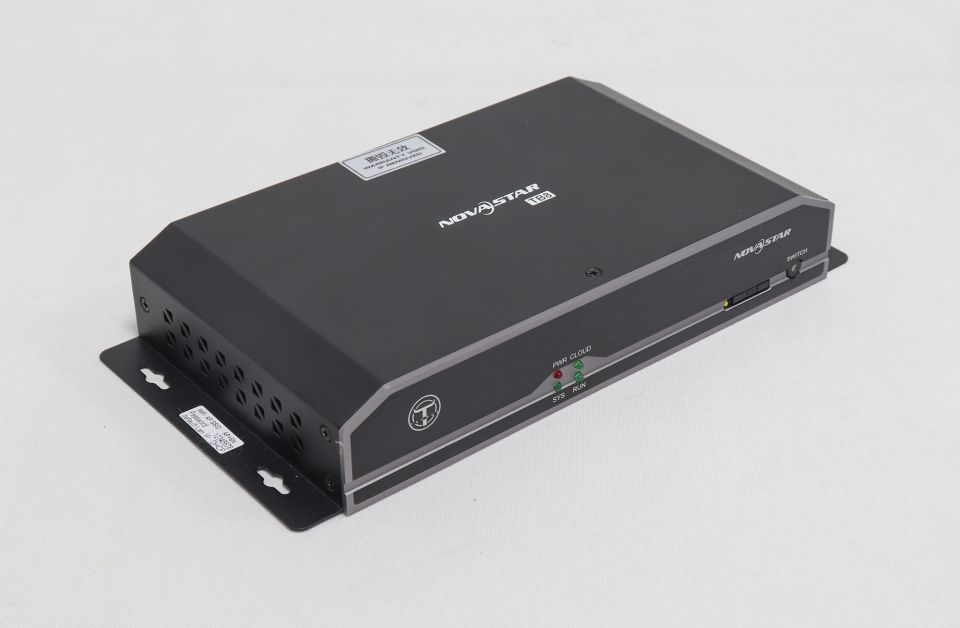

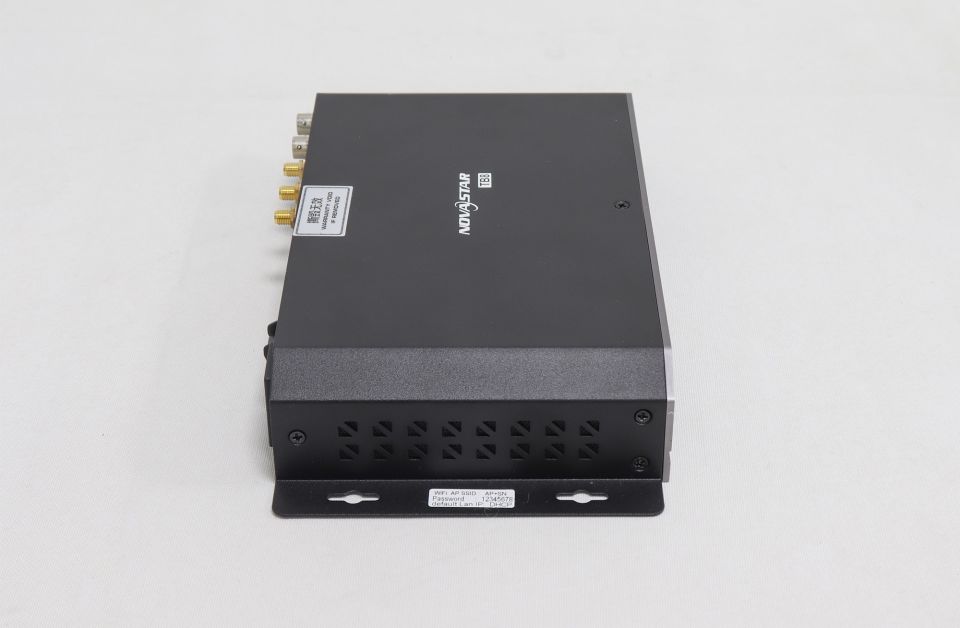

Novastar TB8 Specifications

Processor & Memory:

• Processor: Quad-core ARM A55 @ 1.8 GHz
• Built-in RAM: 1 GB
• Internal Storage: 16 GB

Video Decoding:

• Supported Video Codecs: H.264/H.265

Playback Features:

• Seamless Playback: 1x 4K video playback or 2x 1080p video playback

Control Schemes:

• Control from PC, mobile phone, or tablet: Allows users to publish content and control screens from anywhere, at any time.
• Screen Monitoring: Enables users to monitor screens from anywhere, at any time.

Synchronous and Asynchronous Modes:

• Asynchronous Mode: The internal video source is active.
• Synchronous Mode: The video source input from the HDMI connector is active.

Simultaneous Playback on Multiple Screens:

• NTP Time Synchronization: Yes
• GPS Time Synchronization: Requires specified 4G module (sold separately)
• RF Time Synchronization: Requires specified RF module (sold separately)

4G Module Support:

• Note: The TB8 is shipped without the 4G module. Users must purchase the 4G module separately if needed.
