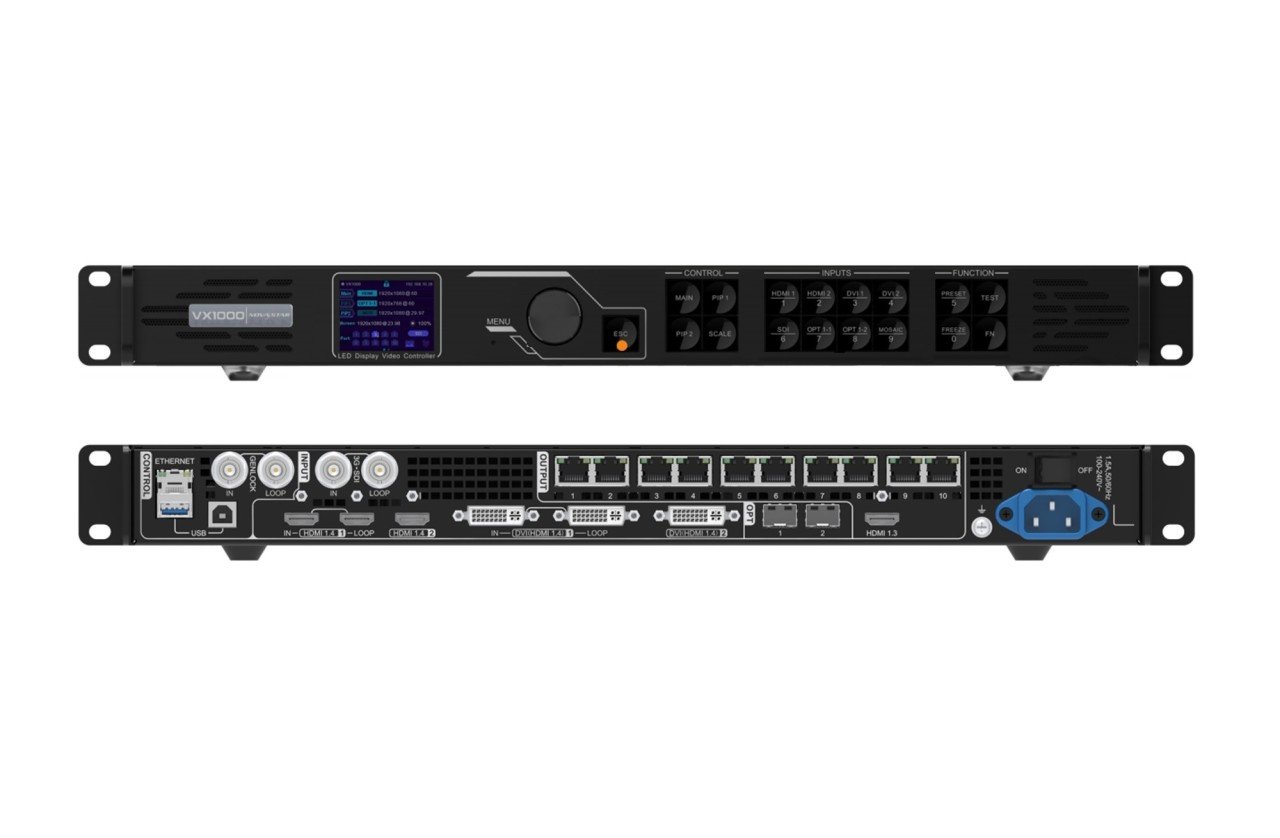

NOVASTAR VX1000

• Input connectors

− 1x HDMI 1.4 (IN & LOOP)

− 1x HDMI 1.4

− 1x DVI (IN & LOOP)

− 1xDVI

− 1x 3G-SDI (IN & LOOP)

− 1x 10G optical fiber port (OPT1)

• Output connectors

− 10x Gigabit Ethernet ports

A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.

− 2x Fiber outputs

OPT 1 copies the output on 10 Ethernet

ports.

OPT 2 copies or backs up the output on 10 Ethernet ports.

− 1x HDMI 1.3

• For monitoring or video output

Self-adaptive OPT 1 for either video input or sending card output

Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector depending on its connected device.

• Audio input and output

− Audio input accompanied with HDMI input

source

− Audio output via a multifunction card

− Output volume adjustment supported

• Low latency

Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.

• 3x layers

− Adjustable layer size and position

− Adjustable layer priority

• Output synchronization

An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.

• Powerful video processing

− Based on SuperView III image quality processing technologies to provide stepless output scaling.

− One-click full screen display

− Free input cropping

• Easy preset saving and loading

− Up to 10 user-defined presets supported

− Load a preset by simply pressing one button Multiple kinds of hot backup

− Backup between devices

− Backup between Ethernet ports

− Backup between input sources

• Mosaic input source supported

The mosaic source is composed of several input connectors of the same type.

Up to 4 units cascaded for image mosaic

Three working modes

− Video Controller

− Fiber Converter − Bypass

All-round color adjustment

Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma

• 3D function

Work with the EMT200 3D emitter and matched

3D glasses to present 3D visual experience. Pixel level brightness and chroma calibration

Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve
