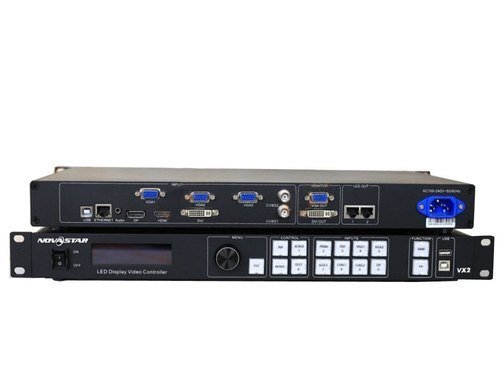

VX2 Video Processor

Overview:

The VX2 video processor is an advanced LED display screen controller that integrates sending card functions with powerful video processing capabilities. Designed for high-quality video presentations, it supports multiple video inputs and outputs, enabling seamless switching and fade effects for enhanced visual experiences. Built on the FPGA processing platform, the VX2 processor is ideal for professional applications where quick setup and high-level control are required.

Key Features:

Video Input and Output:

• Supports 7 video inputs: CVBS*2, VGA*3, DVI*1, HDMI*1, DP*1, all with resolution up to 1920×1200@60Hz.
• Input images can be zoomed point-to-point based on screen resolution.
• Seamless high-speed switch and fade-in/fade-out effects to deliver professional-quality image transitions.
• Supports 10-bit/8-bit HD video sources.
• External HDMI/audio input support for enhanced audio-visual integration.

Image Processing and Video Effects:

• Supports professional-grade video effects, including seamless switching, fade-in/fade-out, and PIP (Picture-in-Picture) adjustments for flexible control over image location and size.
• Adopts the Nova G4 engine, ensuring stable, flicker-free screens without scanning lines and delivering clear, vivid images with excellent depth.
• Supports white balance calibration and color gamut mapping based on the LED screen’s unique features, ensuring true-to-life color reproduction.

System Configuration and Control:

• Touch Track feature enables configuration via a single knob and button, making it easy and intuitive to control without requiring computer software.
• Smart configuration architecture allows quick screen debugging within 30 seconds, reducing setup time significantly on stage.
• Easy-to-use LCD display interface and clear button light indicators for simple control and system management.
• Supports Nova’s new-generation point-by-point correction technology for fast and efficient screen calibration.

Specifications:

• Input Types: CVBS (2), VGA (3), DVI (1), HDMI (1), DP (1)
• Input Resolution: Up to 1920×1200@60Hz
• Video Effects: Seamless switching, fade-in/fade-out, PIP (adjustable location and size)
• White Balance and Color Gamut Mapping: Supports color adjustments based on LED features
• Video Source: 10-bit/8-bit HD video
• Loading Capacity: 1.3 million pixels
• Correction Technology: Point-by-point correction with fast calibration
• Control: Touch Track, intuitive LCD interface, and quick system setup

Applications:

• Ideal for professional LED display setups in concert venues, exhibitions, and stages.
• Perfect for applications requiring high-speed switching, fade effects, and excellent video processing.
• Supports both small and large-scale video displays with its efficient configuration and control capabilities.
