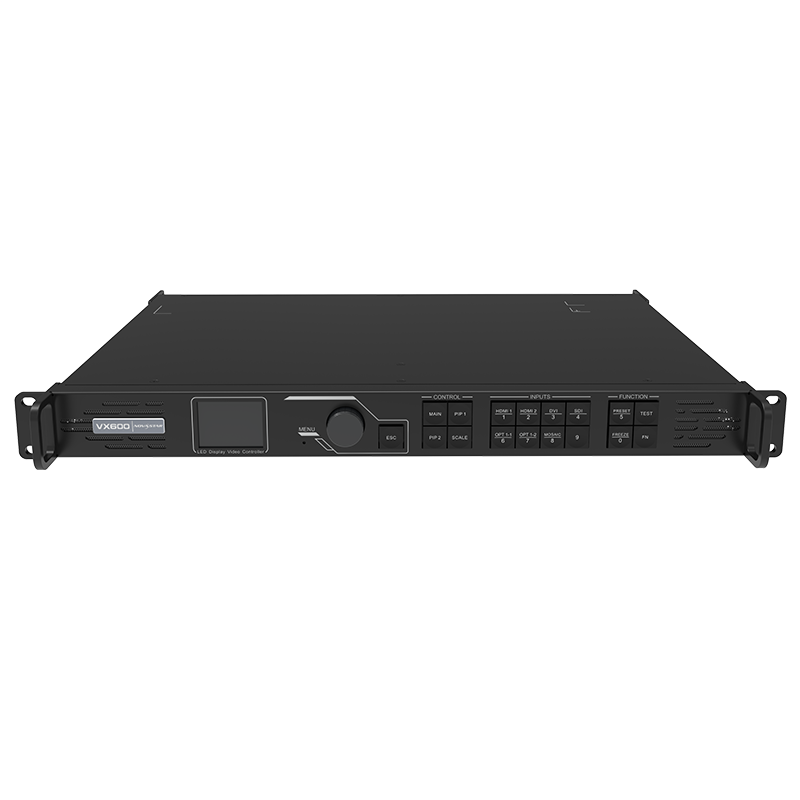

NovaStar VX600 Specifications

Inputs:

• 2x HDMI 1.3 (HDMI-In & Loop): max. 1920×1200@60Hz, Custom EDID's possible
• 1x DVI: 1920×1200@60Hz, Custom EDID's possible
• 1x 3G-SDI: max. 1920×1080@60Hz

Outputs:

• 6x LED-Out (RJ45)
• 1x HDMI 1.3 Out: fixed resolution of 1920×1080@60Hz when the output is used as monitoring
• 2x OPT-Out: 10G

Further Features:

• V-Can Support
• Genlock
• Supports up to 3x layers
• Memory for 10 presets
• Cascading via USB possible
• Display configuration without computer possible
• Control via USB or LAN

General Specifications:

• Supply Voltage: AC 100-240V, 50/60HZ
• Dimensions: 483.6 x 351.2 x 50.1mm (WxDxH)
• Power Consumption: 28W
• Weight: 4kg
