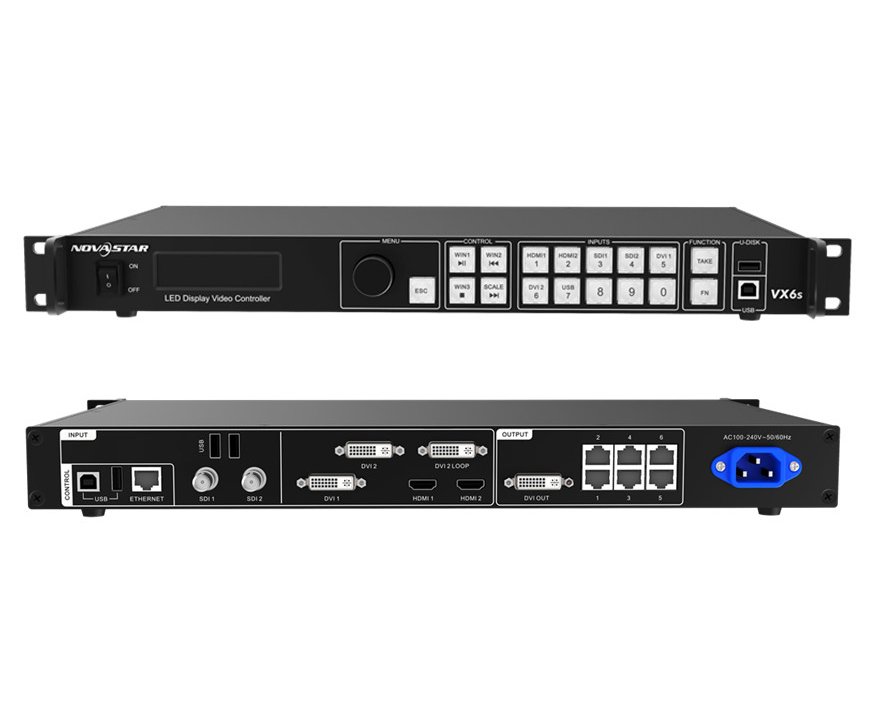

Novastar VX6S Video Processor

Overview:

The Novastar VX6S is a professional video processor designed to offer exceptional image quality and flexible screen control. With support for a variety of video inputs and outputs, it is perfect for high-end LED display setups requiring advanced video processing, multi-layer switching, and fast configuration. The VX6S delivers seamless switching, precise image scaling, and a range of customizable options for professional-grade presentations.

Key Features:

Video Input and Output:

• Maximum video output capacity: 3.9 million pixels.
• Supports 7 input connectors: 2 × 3G-SDI, 2 × HDMI 1.3, 2 × DVI, and 1 × USB.
• Maximum video output width: 4096 pixels.
• Supports up to 3 layers of video output and 1 OSD (On-Screen Display).
• Quick switching and fade-in/out effects between video sources.
• Supports PGM preview in switcher mode and fast switching from PVW to PGM using the TAKE button.

Screen Configuration and Adjustment:

• Automatically scales the input image to fit the whole screen.
• Supports the adjustment of input resolutions and backup of input sources.
• Brightness adjustment for screens loaded with the VX6S video processor.
• Supports up to 16 user presets, which can be saved as templates and used directly.

Advanced Features:

• Supports V-Can for advanced video features.
• Supports cascading of multiple VX6S units via USB.
• Enables display configuration without the need for a computer.
• Intuitive OLED screen and clear button indicators on the front panel for simplified operation.

Input and Output Interfaces:

Input Interfaces:

• 2 × DVI (max. 1920×1200@60Hz)
• 2 × HDMI 1.3 (max. 1920×1080@60Hz)
• 2 × 3G-SDI (max. 1920×1080@60Hz)
• 1 × USB media player (supports .avi, .mp4, .mpg, .mkw, .vob, .jpg, .jpeg, .bmp, .png, .WEBP formats)

Output Interfaces:

• 6 × LED-Out (RJ45)
• 1 × DVI Out
• 1 × DVI Loop

Additional Features:

• Scaling function for seamless video transitions.
• V-Can support for enhanced video capabilities.
• Control via USB or LAN for remote operation.
• Easy display configuration without requiring a computer.

Applications:

• Ideal for professional LED display setups in live events, exhibitions, and broadcast environments.
• Perfect for multi-layered video processing, fast switching, and advanced video effects in high-performance displays.
