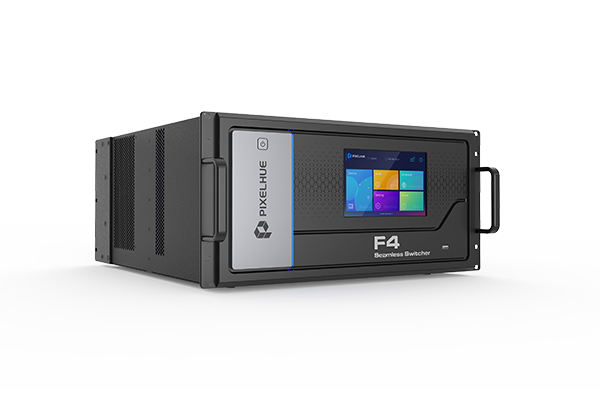

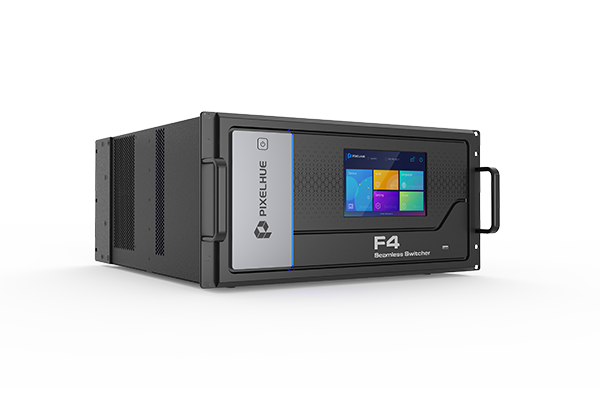

PIXELHUE F4 Standard Configuration 1 Technical Specifications

Inputs:

• Standard, Custom and Advanced EDID Settings: Common resolutions: 1920×1080p@60Hz, 3840x1080p @60Hz, and 3840x2160p @60Hz
• Input Source Deinterlacing Processing
• Input Source Cropping

Outputs:

• Standard, Custom and Advanced Output Timing Settings: 1920x1080p @60Hz
• Output Width: Can be up to 8192 pixels, making it a better choice for LED applications

Multiviewer Outputs:

• Two Dedicated Output Connectors: Configured as MVR connectors with a fixed resolution of 1920x1080 @60Hz
• Monitor All Inputs and Screens: PVW and PGM
• UMD Display and Color Adjustment
• MVR Background Color Adjustment
• Customizable Layouts for Easy Use
• Border Adjustment for MVR Window

AUX:

• AUX Screens Supported: AUX connector can be in independent or mosaic use
• AUX Screen Switching: Can follow preset switching
• Free View of Inputs and Screens: PVW and PGM

Screens:

• Single Screens or Edge-Blended Widescreens: Outputs configured accordingly
• Bezel Compensation and Edge Blending
• Irregular Screen Mosaic: Output AOI function, ideal for complex and irregular LED screen apps
• Dedicated BNC with Loop-Through for Genlock: Ensures synchronized output
• Virtual Pixels Supported
• Up to 128 Presets Supported

Transition and Effect:

• Send PVW to PGM: Via Take, Cut, or T-bar operation
• Fade Transition
• Customizable Transition Durations
• Copy or Swap Display on PVW and PGM

Layers:

• Supported Layers: Each output card supports up to 8x SL mixing layers, 4x DL mixing layers, or 2x 4K mixing layers
• Full-Screen Roaming Supported
• Fade and Cut Transitions: Available on all layers
• Adjustable Layer Mask and Border: With different border effects
• Layer Flipping, Copying, and Mirroring
• Pure Color Layer: Can be used as background

Background & Logo:

• Background: Captured or imported image
• Unlimited Background Quantity: Stored in 512 MB storage space
• Imported Logo Images Supported
• Independent Background and Logo for Each Screen
• Background Fills the Whole Screen: By default

Processing:

• High-Quality Scaling Engine
• Low Latency Processing
• HDCP 1.4 and HDCP 2.2 Compliance

Control:

• Intuitive Control: Via U3 event controller
• Dual Control Modes: U3 event controller and control PC

Others:

• Free Conversion: Between HDR10, HLG, and SDR
• User Keys: For more configuration, containing layer properties such as size, position, border color, etc.
