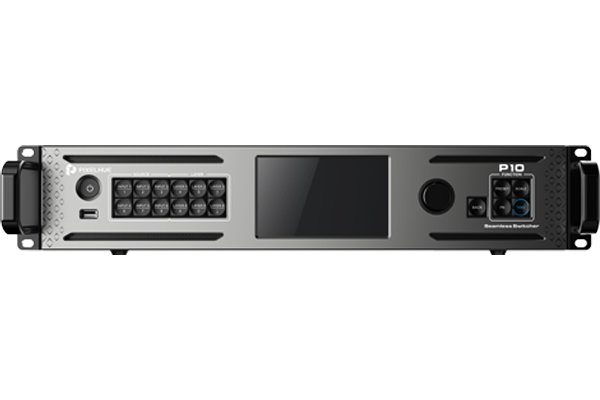

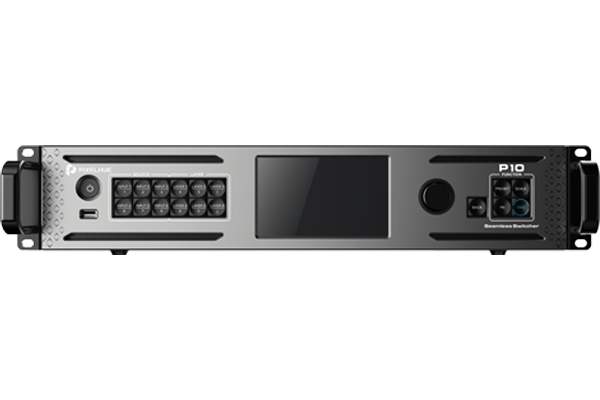

Techinical Specificaition
INPUTS
For an input that contains a DP 1.2 and HDMI 2.0, only one connector can be used as the input source at the sametiem
• DP 1.2
◦ Maximum resolution: 4096×2160@60Hz/8192×1080@60Hz
◦ Minimum resolution: 800×600@60Hz
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 8192 pixels (1080×8192@60Hz)
◦ Maximum frame rate: 120 Hz
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 1.3 compliant
• HDMI 2.0
◦ Maximum resolution: 4096×2160@60Hz/8192×1080@60Hz
◦ Minimum resolution: 800×600@60Hz
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 8192 pixels (1080×8192@60Hz)
◦ Maximum frame rate: 120 Hz
◦ Support for HDR (P20 only)
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 2.2 compliant and downward compatible
• 12G-SDI
◦ Support for ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD)
◦ Maximum resolution: 4096×2160@60Hz
◦ Maximum frame rate: 60 Hz
◦ Support for interlaced input signal
OUTPUTS
• HDMI 2.0
◦ Maximum resolution: 4096×2160@60Hz/8192×1080@60Hz
◦ Minimum resolution: 800×600@60Hz
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 8192 pixels (1080×8192@60Hz)
◦ Maximum frame rate: 120 Hz
◦ Support for HDR (P20 only)
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 2.2 compliant and downward compatible
• HDMI 1.3
◦ Maximum resolution: 1920×1080@60Hz/2048×1080@60Hz
◦ Minimum resolution: 800×600@60Hz
◦ Maximum width: 2048 pixels (2048×1080@60Hz)
◦ Maximum height: 2048 pixels (1080×2048@60Hz)
◦ Maximum frame rate: 120 Hz
◦ EDID management (support for standard resolutions up to 2048×1152@60HZ and custom resolutions)
◦ HDCP 1.4 compliant and downward compatible
OPT
• 10G optical fiber ports
• The OPT ports copy the outputs of HDMI 2.0 connectors.
• The transmission distance with SMF is up to 10 km.
Multiviewer
• One dedicated HDMI 1.3 connector
• Connect to the Multiviewer display, allowing for live monitoring of all the inputs and outputs from one display.
• The output resolution is fixed at 1920×1080@60Hz.
AUX
• HDMI 1.3 connectors
• Connect to auxiliary devices such as teleprompters.
• The output resolution is fixed at 1920×1080@60Hz.
Ethernet
• 2x Gigabit Ethernet ports used for control and input view
• One works as primary and the other as backup.
• Two Ethernet ports share the same IP address.
Genlock
Genlock synchronization signal connector
• GENLOCK IN: Synchronization signal input
• GENLOCK LOOP: Synchronization signal loop output
Transition & Effects
• Seamless transition from PVW to PGM via Take, Cut or T-bar operation
• Fade in/out supported
• Customizable transition durations (0.1s to 10s)
• Two options for transition between PVW and PGM: Copy and Swap
Layers
• P20 supports up to 7 layers (3x 4K@60Hz layers and 4x 2K@60Hz layers, or 4x 4k@60Hz layers.)
• P10 supports up to 6 layers (2x 4K@60Hz layers and 4x 2K@60Hz layers, or 3x 4k@60Hz layers.)
• Customizable layer layout
BKG & Logo
• Up to 255 BKGs & LOGOs (Maximum storage space: 512 MB)
• BKG can be either a captured or imported image.
• High-resolution images can be captured from live inputs and outputs and
Control Options
• Front panel buttons and 5-inch graphical LCD
• Event controller U5/U5 Pro
• Event management software PixelFlow
PixelFlow Software Functionalities
• Long-term stable running
• Upgraded and visualized UI, adaptive to U5/U5 Pro/ PC screens
• One click to change skins of U5/U5 Pro buttons
• Software parameter controllable by U5/U5 Pro encoders or faders
• Distinct function areas and hover menu for ease of use
Processing Capability
• FPGA-based high-performance image enhancement architecture
• Ultra-low latency, as low as 1 frame in proper configuration
• BT.601, BT.709, BT.2020, DCI-P3 color space processing support
• Free conversion between SDR, HDR10 and HLG (P20 only)
• Advanced DSK capability: chroma key and luma key (P20 only)
• Compatible with HDCP 1.4 and HDCP 2.2
