INPUTS
• Up to 48x 4K concurrent inputs through 6 input cards
• Standard, custom and advanced EDID settings
Custom resolutions: 3840×2160@60Hz, 4096×2160@60Hz, 8192×1080@60Hz etc.
• Input source deinterlacing processing on 4 connectors of each input card
• Input source cropping
• Status LED indicators provided for easy troubleshooting
OUTPUTS
• Up to 16x 4K concurrent outputs through 4 output cards
• Standard, custom and advanced output timing settings
• Output width up to 8192 pixels, better choice for LED applications
• Status LED indicators provided for easy troubleshooting
Multiviewer
• Two dedicated output connectors configured as Multiviewer connectors, with
resolutions adjustable
• Independent and copying modes: The two connectors display different
Multiviewer images, or the HDMI 2 copies the HDMI 1 output
• Monitor all inputs and screens (PVW and PGM)
• Customizable layouts for easy use
• UMD display and color adjustment
• Border adjustment for Multiviewer windows
Screens
• Output configured as single screens or edge-blended widescreens
• Bezel compensation and edge blending
• Irregular screen mosaic and output AOI function, ideal for complex and irregeller
LED screen applications
• The sync source can be set independently for each screen
Transition & Effects
• Luma key and chroma key
• Cut and fade transitions
• Customizable transition durations
• PVW to PGM via Take, Cut or T-bar operation
• Copy or Swap mode for PVW to PGM transition
Layers

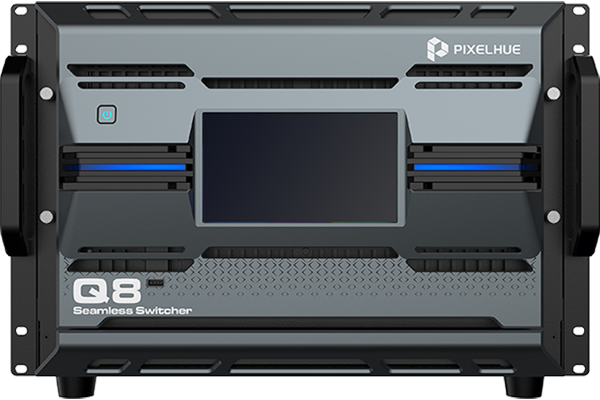

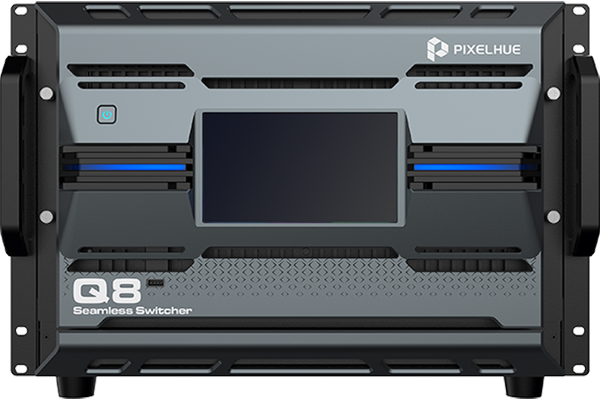

• Each Q8 supports up to 32x 4K mixing layers in switcher mode or 64x
4K single layers in PGM only mode
• Full screen roaming supported
• Fade and Cut effects for PVW to PGM transition
• Adjustable layer mask and border with different border effects
• Layer flipping, copying and mirroring
Still Image Management
• Still images can be imported or captured from input or output
• Unlimited still image quantity in 1G storage space
• Still images can be used as BKG and still layers
• Independent BKG for each screen
• BKG filling the whole screen by default
Processing
• FPGA based high performance image processing architecture with
SuperView scaling engine inside
• Ultra-low latency, as low as 1 frame in proper configuration
• BT.601, BT.709, BT.2020, DCI-P3 color space processing support
• Advanced keying capability: chroma key and luma key
• Compatible with HDCP 1.3, HDCP 1.4 and HDCP 2.2
Control Options
• Event controller U5/U5 Pro
• Event management software PixelFlow
PixelFlow Functionalities
• Long-term stable running
• Upgraded and visualized UI, adaptive to U5/U5 Pro/PC screens
• One click to change skins of U5/U5 Pro buttons
• Software parameter controllable by U5/U5 Pro encoders or faders
• Distinct function areas and hover menu for ease of use
