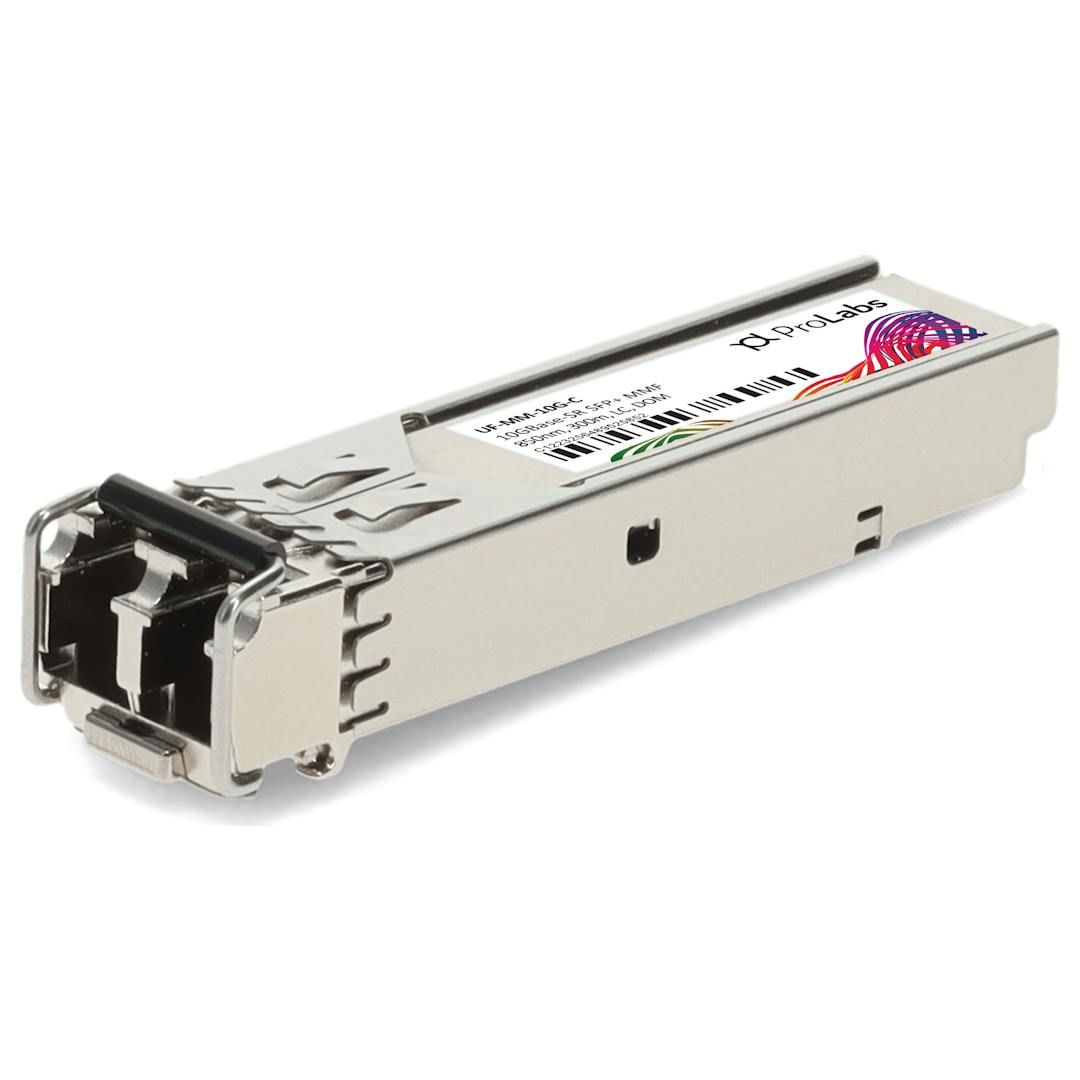

Description of the SFP Module (MM) 10G

Module Type:

• SFP+ (Small Form-factor Pluggable Plus)

Data Rate:

• 10 Gigabits per second (10G)

Fiber Type:

• Multimode Fiber (MMF)

Connector Type:

• LC Duplex (typically for 10G multimode)

Wavelength:

• 850 nm (typical for multimode 10G SFP+ modules)

Transmission Distance:

• Up to 300 meters (depending on fiber type, e.g., OM3 or OM4)

Standard:

• 10GBASE-SR (Short Range)

Compatibility:

• Works with devices that support 10G SFP+ ports (e.g., switches, routers, network interface cards)

Power Consumption:

• Typically < 1W (can vary based on specific model)

Operating Temperature Range:

• Commercial: 0°C to 70°C
• Industrial: -40°C to 85°C (depending on the model)

Optical Budget:

• Typically 4.7 to 6.0 dB for 10GBASE-SR modules (depending on fiber type and distance)

Compliance:

• RoHS Compliant (Restriction of Hazardous Substances)

Protocols Supported:

• Ethernet (IEEE 802.3ae 10GBASE-SR)

Applications:

• Data centers
• Enterprise networks
• Storage area networks (SAN)
• High-speed Ethernet backbone connections
