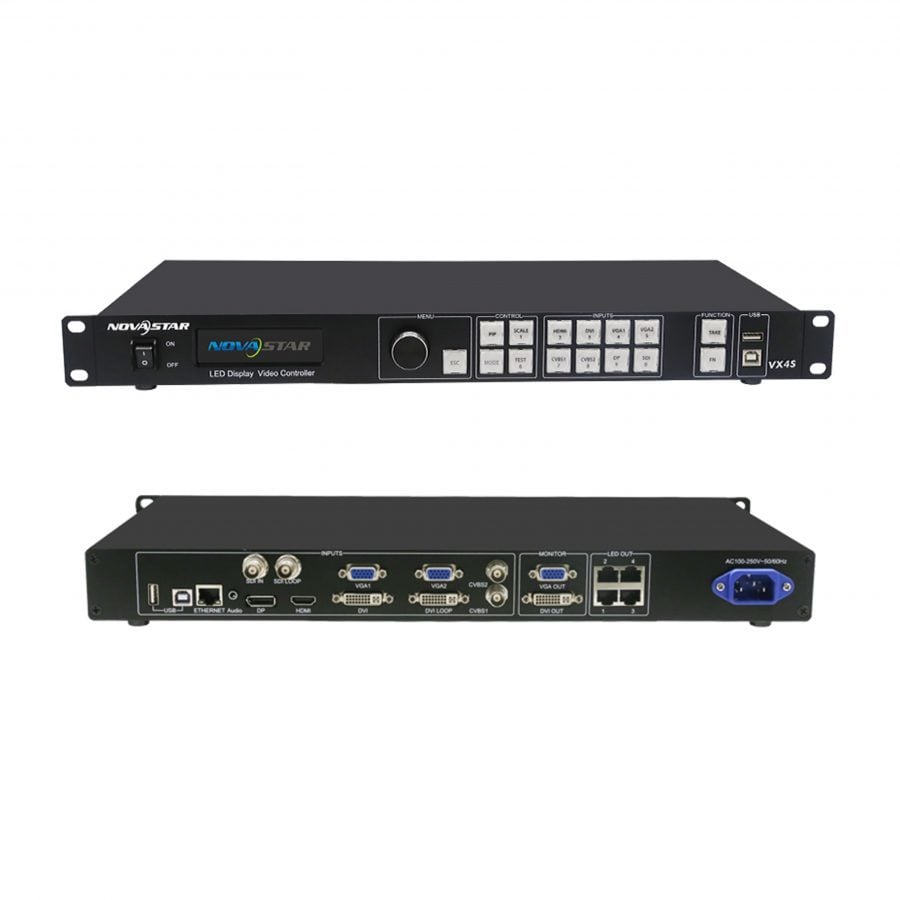

Novastar VX4S Video Processor

Overview:

The Novastar VX4S video processor is a professional LED display controller that integrates advanced video processing technology with excellent image quality and flexible image control. Designed to meet the demanding needs of the broadcast industry, the VX4S offers seamless switching, fade effects, and precise image adjustments for a superior display experience.

Key Features:

Video Input and Output:

• Supports 6 video inputs: CVBS×2, VGA×2, DVI×1, HDMI×1, DP×1, SDI×1.
• Input resolution up to 1920×1200@60Hz.
• Input images can be zoomed point-to-point based on the screen resolution.
• Provides seamless high-speed switching and fade-in/fade-out effects to enhance picture quality.
• Adjustable location and size of PIP (Picture-in-Picture) for flexible image placement.

Image Processing and Video Effects:

• Adopts the NovaStar G4 engine for stable, flicker-free screens without scanning lines.
• Delivers exquisite images with a strong sense of depth.
• Supports white balance calibration and color gamut mapping to ensure true-to-life color reproduction based on LED screen features.
• Supports HDMI/external audio input.
• Supports 10-bit/8-bit HD video sources for high-quality visuals.

System Configuration and Control:

• Supports Easy Screen Configuration with one knob and one button, simplifying the setup process.
• Smart configuration architecture allows quick screen debugging in just a few minutes, reducing setup time significantly.
• Intuitive LCD display interface and clear button indicators for easy control and management.
• Supports NovaStar’s new-generation point-by-point calibration technology for fast and efficient screen calibration.

Specifications:

Electrical Specifications:

• Power Connector: AC100-240VAC 50/60Hz
• Power Consumption: 25W
• Operating Temperature: -20℃ to 70℃
• Operating Humidity: 20%RH to 90%RH
• Storage Humidity: 10%RH to 95%RH

Physical Specifications:

• Dimensions: 482.6mm × 275mm × 45mm
• Package Dimensions: 2.55 kg
• Net Weight: 5.6 kg
• Carrying Case: 530mm × 140mm × 370mm
• Accessory Box: 402mm × 347mm × 65mm
• Packing Box: 550mm × 400mm × 175mm

Accessories:

• 1 × Power Cord
• 1 × Ethernet Cable
• 1 × DVI Cable
• 1 × HDMI Cable
• 1 × DP Cable
• 1 × VGA Cable
• 1 × SDI Cable

Certifications:

• CE, RoHS, FCC, UL/CUL, RCM, CB, KC, EAC

Noise Level:

• Typical at 25°C/77°F: 40dB (A)

Applications:

• Ideal for high-end LED display setups in broadcast, events, concerts, and exhibitions.
• Perfect for projects requiring flexible image control and high-quality video presentations.
